Hauler 1200X - 13.5 hp Petrol with Drop In Refresher Insert

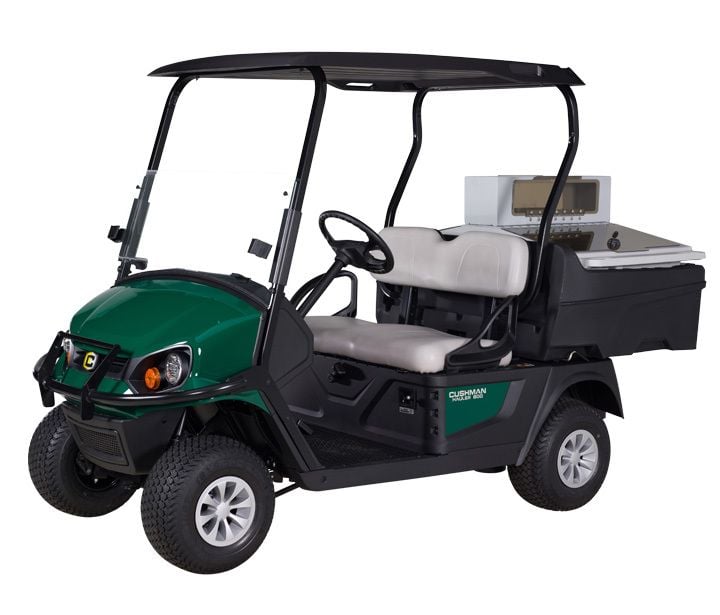

This 36 Kg lightweight drop-in unit is designed to fit in the bed of the Cushman Hauler Vehicles. With a beverage compartment capacity up to 290 cans, the Refresher Drop-In will make accommodating to your customers a breeze. Fitted onto a Hauler 800X Petrol vehicle or Hauler 1200 X Petrol Vehicle - you can be confident that the vehicle is up to the task.
Standard Features
- Kawasaki 13hp Single Cylinder Engine
- Black Top Assembly & Grey Seating
- Tail & Brake Lights
- LED HeadLights
- Turn Signals
- Steel DuraShield Epoxy Coated Chassis
- Body Finish Injection Moulded TPO
- Low Fuel/Oil Gauge
- Hour Meter
- Front Black Bumper/ Brush Guard
- Unique Key Switch
- Fender Flares
- Limited Slip Di erential with Di Guard
- 12-Volt Outlet
- Solid Windshield (LEXAN)
- Horn and Reverse Beeper
- K 500 20x 8- 10 (6 Ply) Wheels
- Comfort Grip Steering Wheel
- Drop In Insert with Counter top & consumable Ice tray
- Comfort Grip Steering Wheel
- Rearview Mirror
- Choice of Colours

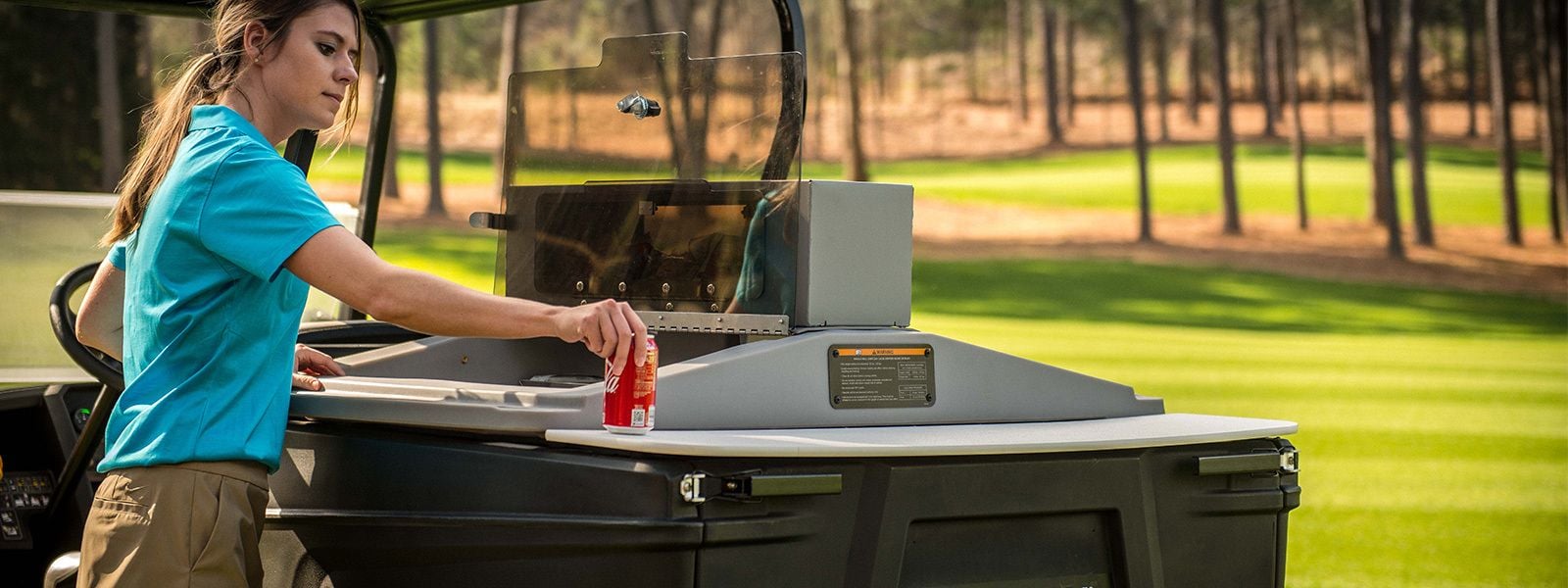

Refresher Features:
- Dry Storage Cabinet
- Locking Cold Beverage Bins
- Candy Trays
- Beverage Divider
- Rear facing ball valve drainswith hose threading
- Easy install- no hardware required
Options/Accessories
- Improved Surface Tyres
- All Weather Enclosure to Cab
- USB Outlet
- Metallic Hubcaps ( Gold or Silver)
- Tow Hitch and 50 mm Tow Ball
Refresher Optional Extras:
- Optional consumable ice bin
- Optional rear counter top for Hauler 1200 and Hauler Pro models
Specifications
Dimensions
Overall Length: 302.3 cm
Overall Width: 125.5 cm
Overall Height (with canopy): 195.6 cm
Wheel Base: 196.9 cm
Front Wheel Track: 96.5 cm
Rear Wheel Track: 97.8 cm
Ground Clearance (at differential): 17.8 cm
Cargo Box Capacity: 12 Cu ft (0.34m³)
Power
Powertrain: 4-Cycle 24.5 ci(401cc) Cylinder
Valvetrain: Single Cylinder OHV
Horsepower: 13.5 (10.1 kW) Exceeds JAEJ1940 Standard
Electric System: Starter/Generator. Solid-State Regulator
Battery (qty/type): One, Maintenance Free 12 V
Key or Pedal Start: Pedal Start
Oil Filter: Spin-On
Cooling System: Air Cooled
Fuel Capacity: 22.7 Litre
Drive Train: Continously Variable Transmission (CVT)
Transaxle: Differential with Helical Gears
Gear Selection: Forward-Reverse
Rear Axle Ratio: 11.42:1 (Forward) 15.78:1 ( Reverse)
Performance
Seating Capacity: 2 Person
Curb Weight: 455 Kg
Vehicle Load Capacity: 408 Kg
Bed Load Capacity: 227 Kg
Towing Capacity: 544 Kg
Outside Clearance Circle: 7.2 m
Speed (level ground): 26.5 kph kph ± 0.8 kph
Steering & Suspension
Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel, Mechanical Self-Adjusting Drum
Parking Brake: Self-Compensating, Single Point Engagement
Tyres: 20 x 8 - 10
Body & Chassis
Frame: Welded steel with Durashield powder coat
Front Body & Finish: Injection Moulded TPO
Rear Body & Finish: Injection Moulded PP
Standard Colour: Forest Green
Optional Colour: Almond, Black, Electric Blue, Flame Red, Orange, Patriot Blue, White
Available Seat Colours: Grey
DROP IN SPECS
Dimensions
Dry Storage: 1722.5 Cu Inch
Can Capacity: 290
Overall Length:77.32 cm
Overall Length with Rear Counter: 110 Cm
Overall Width: 124.5 cm
Overall Height: 65.2 cm
Overall Weight: 36 Kg
Body
Frame: Foam Filled Roto Moulded
)
)
