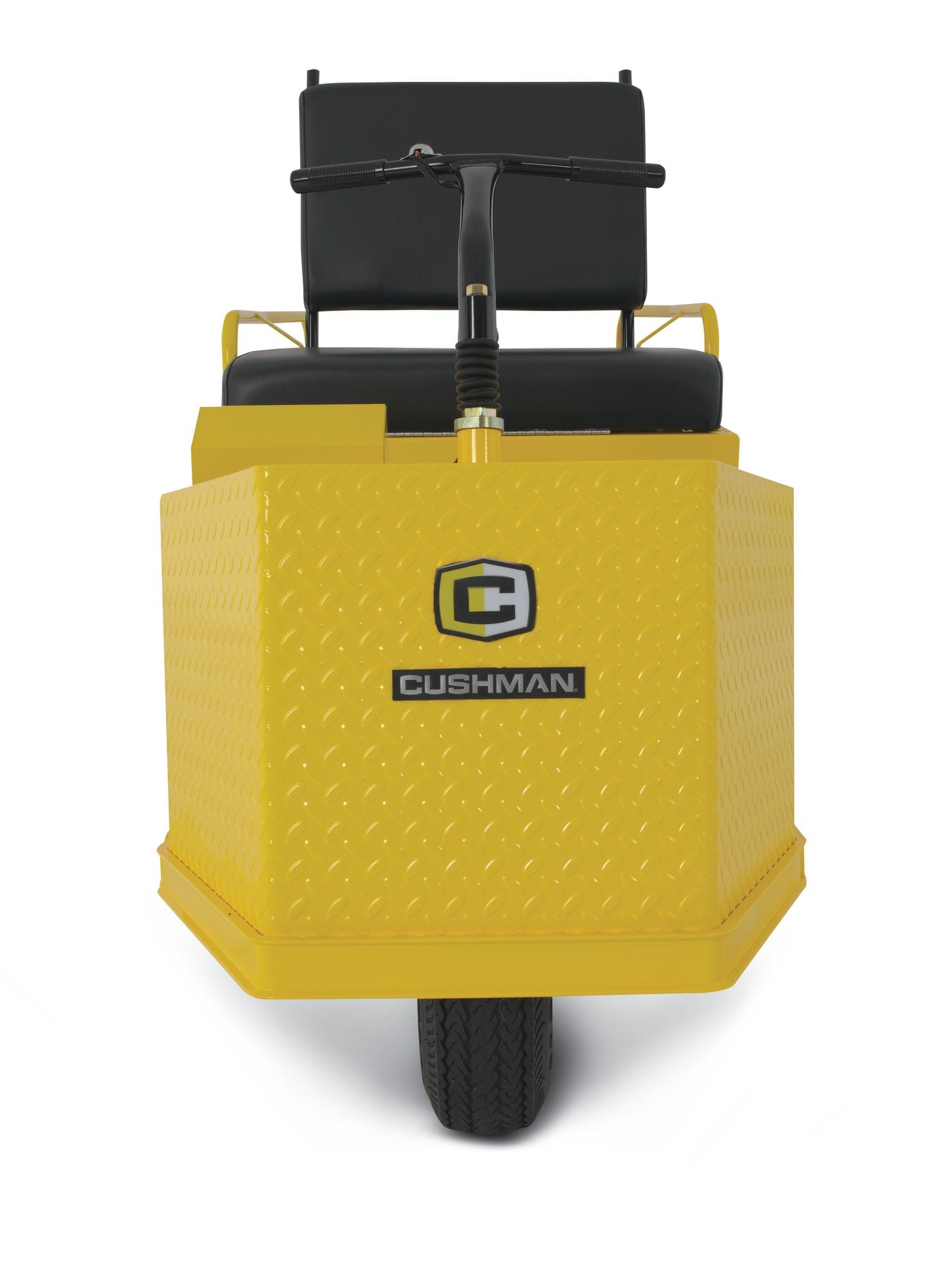

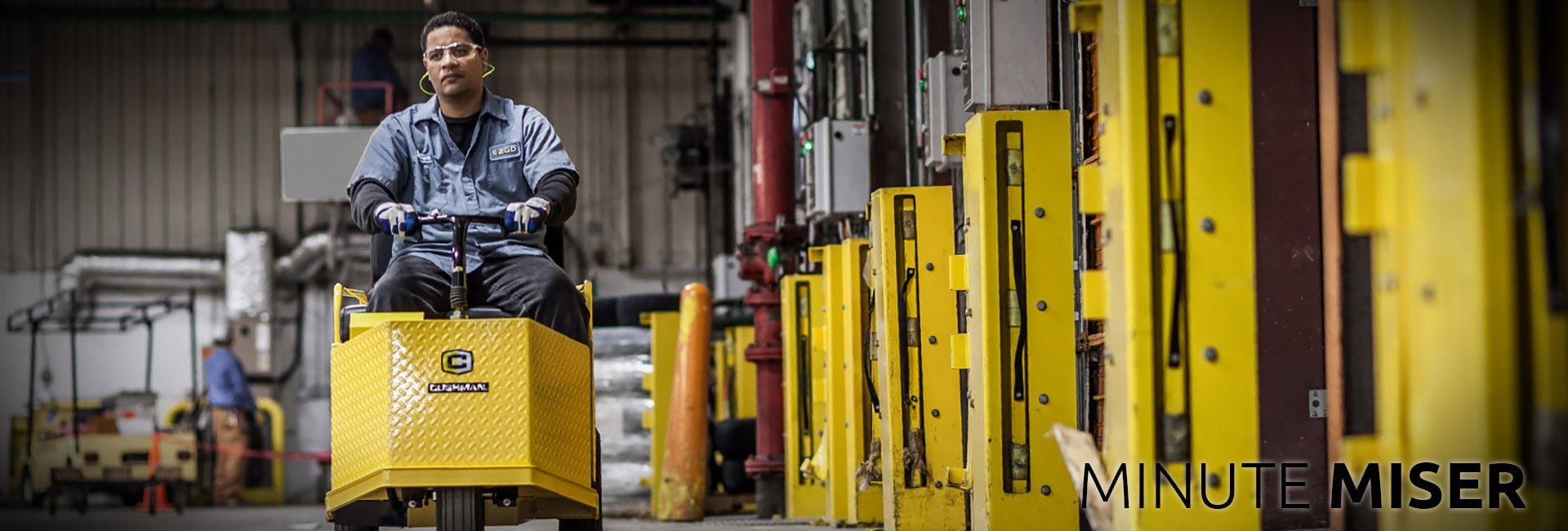

Minute Miser- 24v DC Electric
Long walks are wasted minutes when workers are on the clock. The Minute Miser personnel carrier was built to cut the waste, with a quick and agile design that lets you move workers and supplies around your facility fast. So hop aboard and take hold of a more efficient operation.
Standard Features
- 4 x 6V Trojan T105 Deep Cycle Batteries
- 24v Delta Q DC On-Board Charger
- Head Light
- Hour Meter
- State of Charge Meter
- Operator Presence Switch
- Tiller Bar Steering
- Welded Steel with DuraShield coating Frame & Body
- Horn and Reverse Beeper
- Body Finish painted Diamond pattern
- Rear Seat Folds Down to create additional seating
Options/Accessories
- Steering Wheel
- Foam Filled Tires
- EE Certification
- BFS Battery Filling System
- Tow Hitch and 50 mm Tow Ball
Specifications
Dimensions
Overall Length: 216 cm
Overall Width: 76 cm
Overall Height : 99 cm
Wheel Base: 122 cm
Front Wheel Track: N/A
Rear Wheel Track: 65 cm
Ground Clearance (at differential): 10 cm
Cargo Deck Capacity: 136 Kg
Cargo Box Material: Ply Wood
Power
Power Source: 24 Volts DC Series Wound
Horsepower: 8.25 hp ( 6.15 kW) @ 1570 RPM
Electric System: 24 Volt DC
Battery (qty/type): Four, 6 Volt Deep Cycle
Key or Pedal Start: Pedal Start
Battery Charger: 24v On-board, 100-240V AC On-board, UL& CE
Speed Controller: Solid State 250 Amp
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse
Rear Axle Ratio: 14.78:1
Performance
Seating Capacity: 2 Person
Dry Weight (without battery): 200 Kg
Curb Weight: 313 Kg
Vehicle Load Capacity: 250 Kg
Bed Load Capacity: 136 Kg
Outside Clearance Circle: 3.3 m
Speed (level ground): 14 kph ± 0.8 kph
Steering & Suspension
Steering: Direct Handlebar to Front Fork
Front Suspension: Torque Block
Rear Suspension: Coil Springs and Single Shock Absorber
Service Brake: Rear Wheel Mechanical Drum
Parking Brake: Single Point Latch
Tyres: 4.8 x 8 (Load Range B)
Body & Chassis
Frame: Welded steel with Durashield powder coat
Body & Finish: Diamond Plate Patterned, Poly Primer & Acrylic
Standard Colour: Safety Yellow
Optional Colour: Flame Red, Hunter Green, Arctic White
Available Seat Colours: Black
)
)
