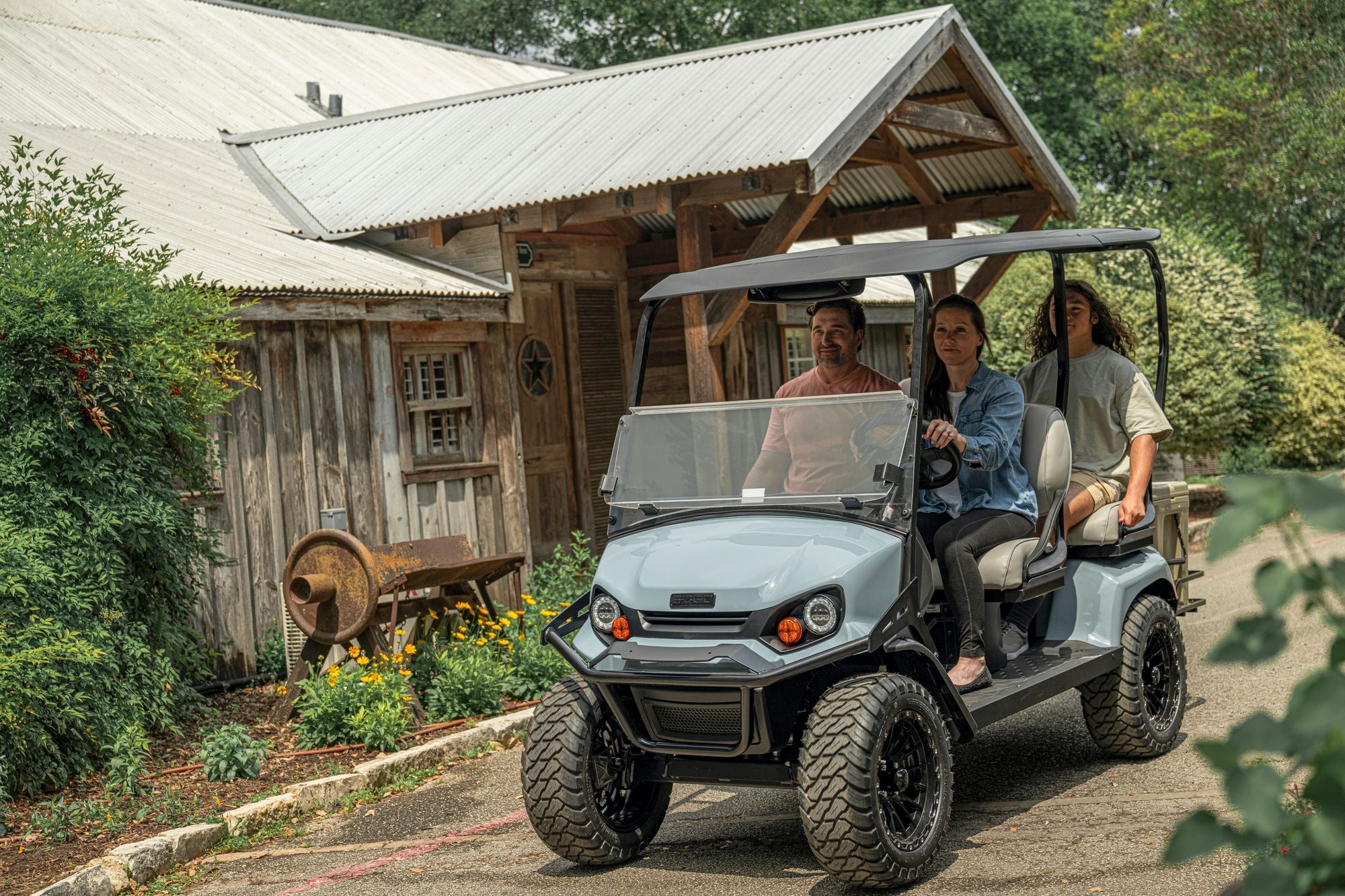

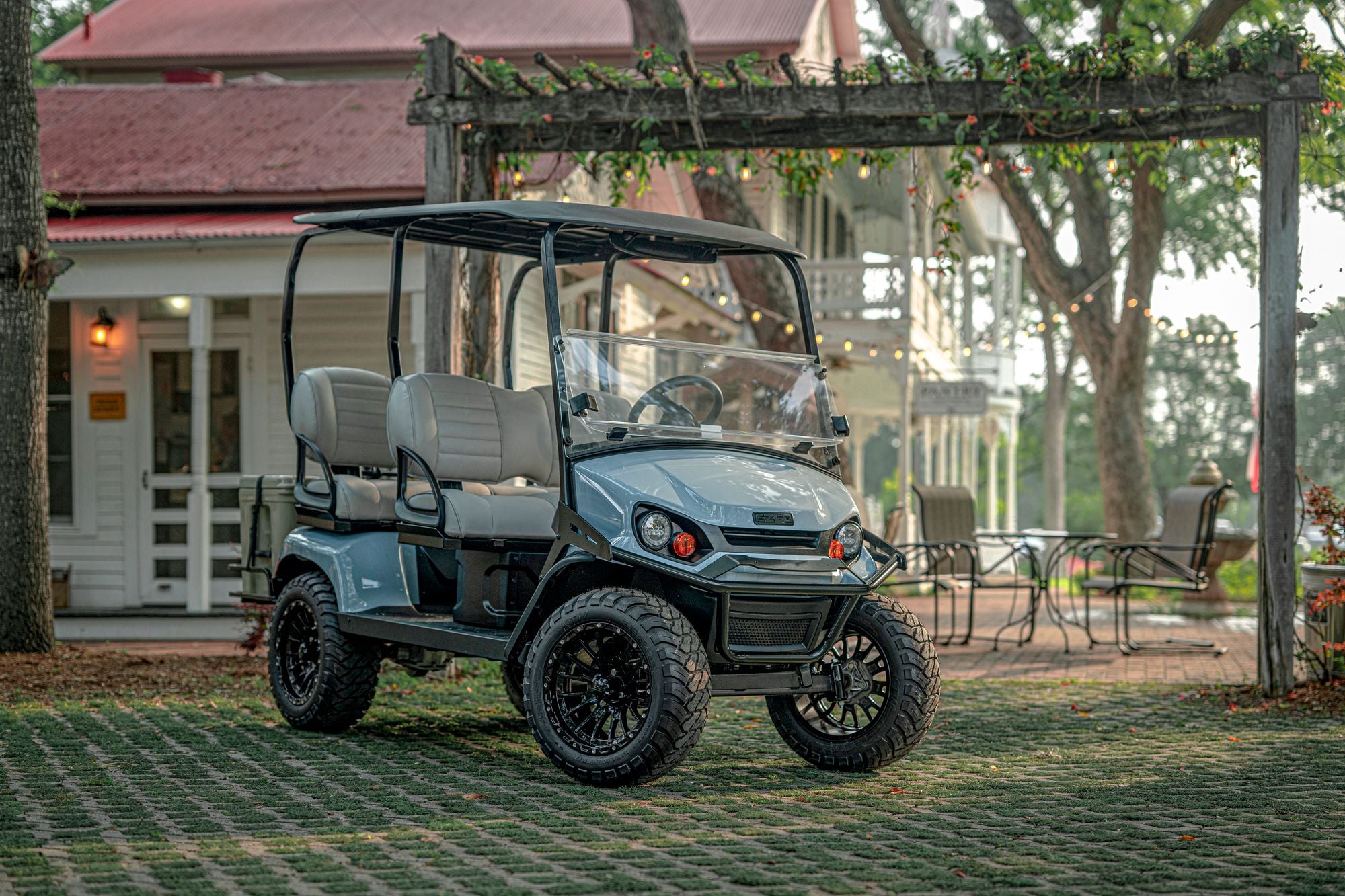

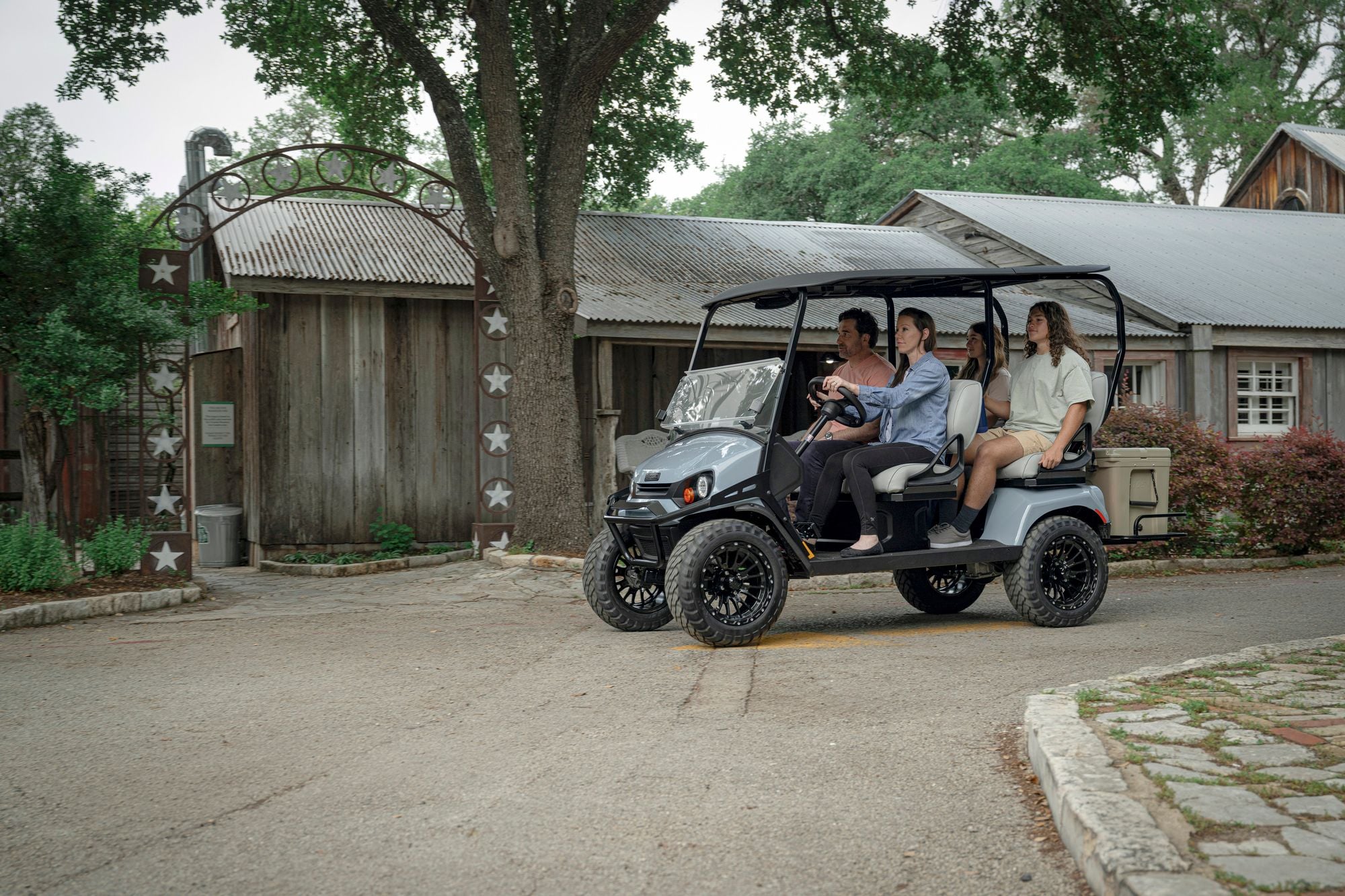

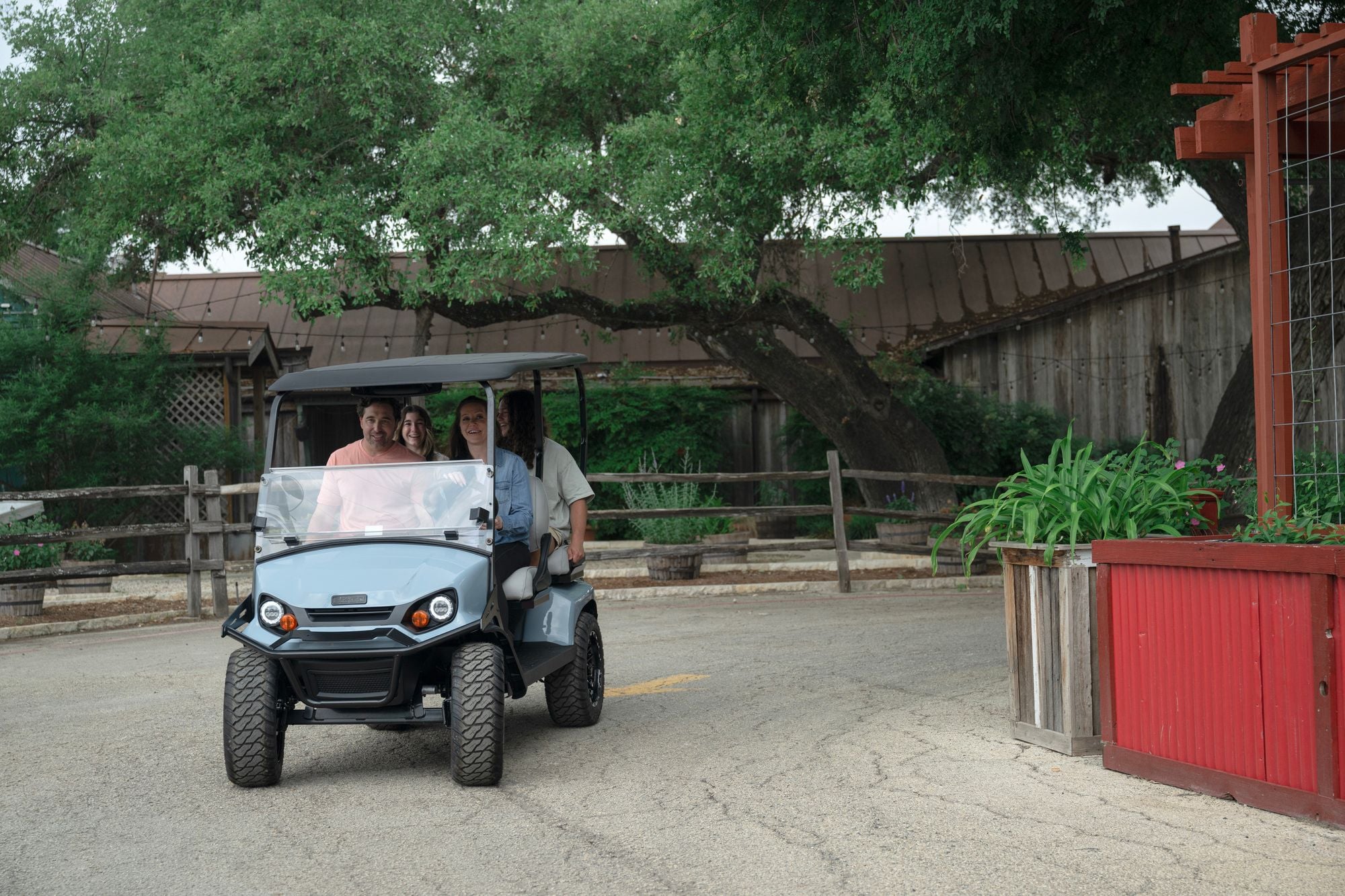

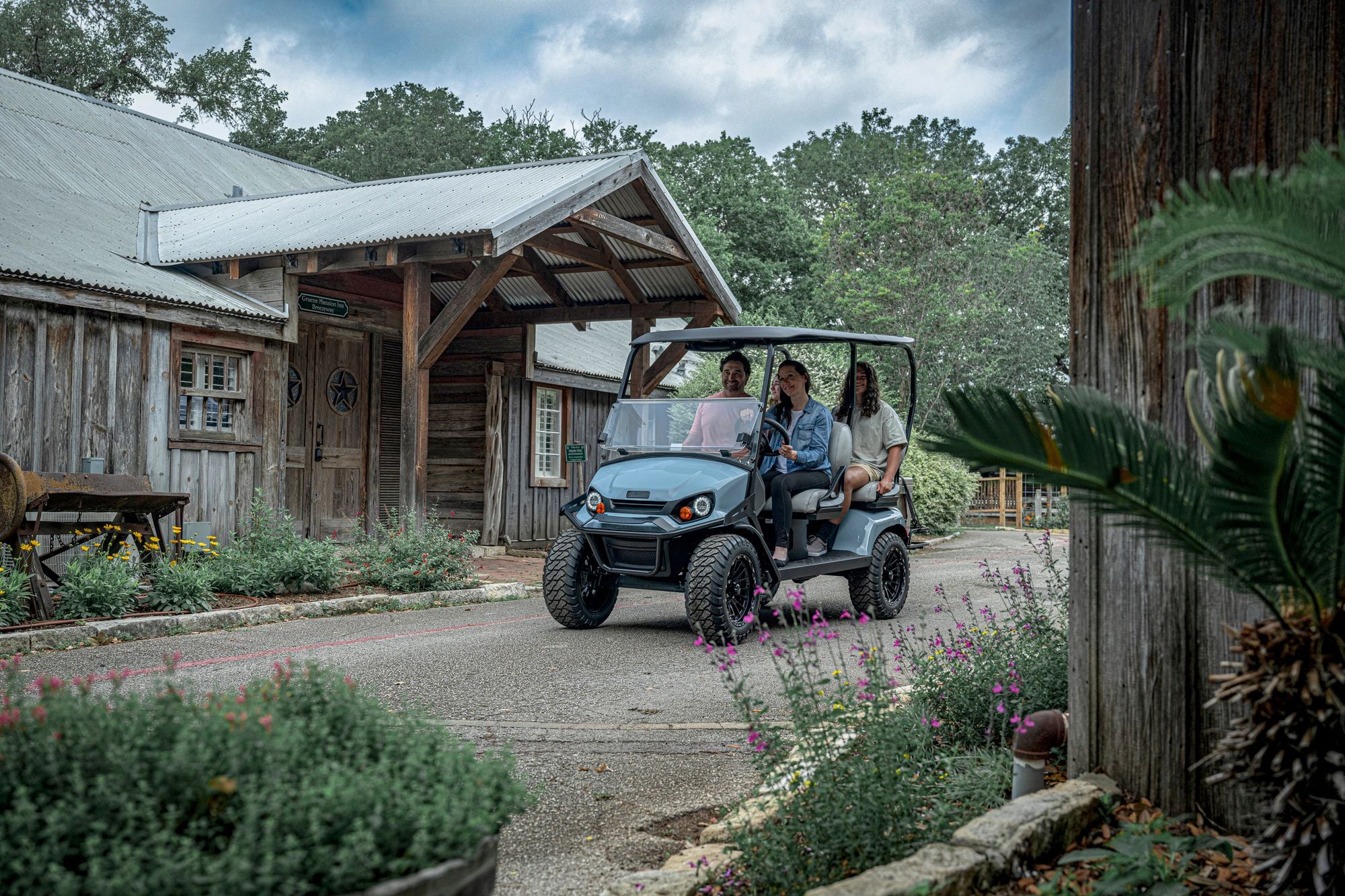

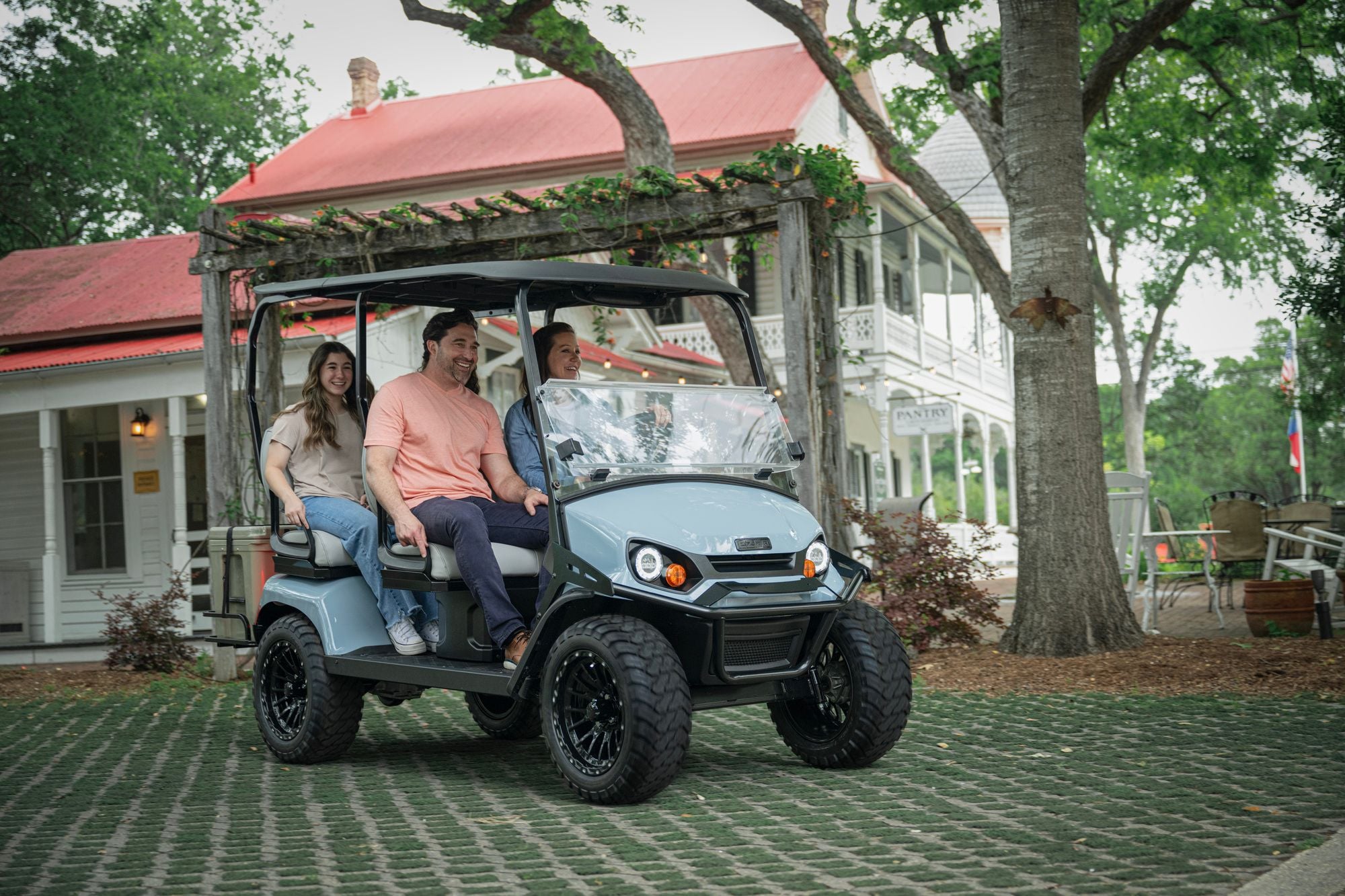

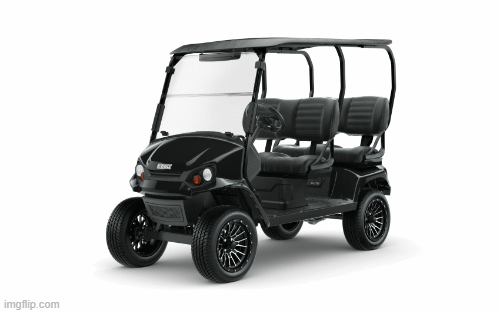

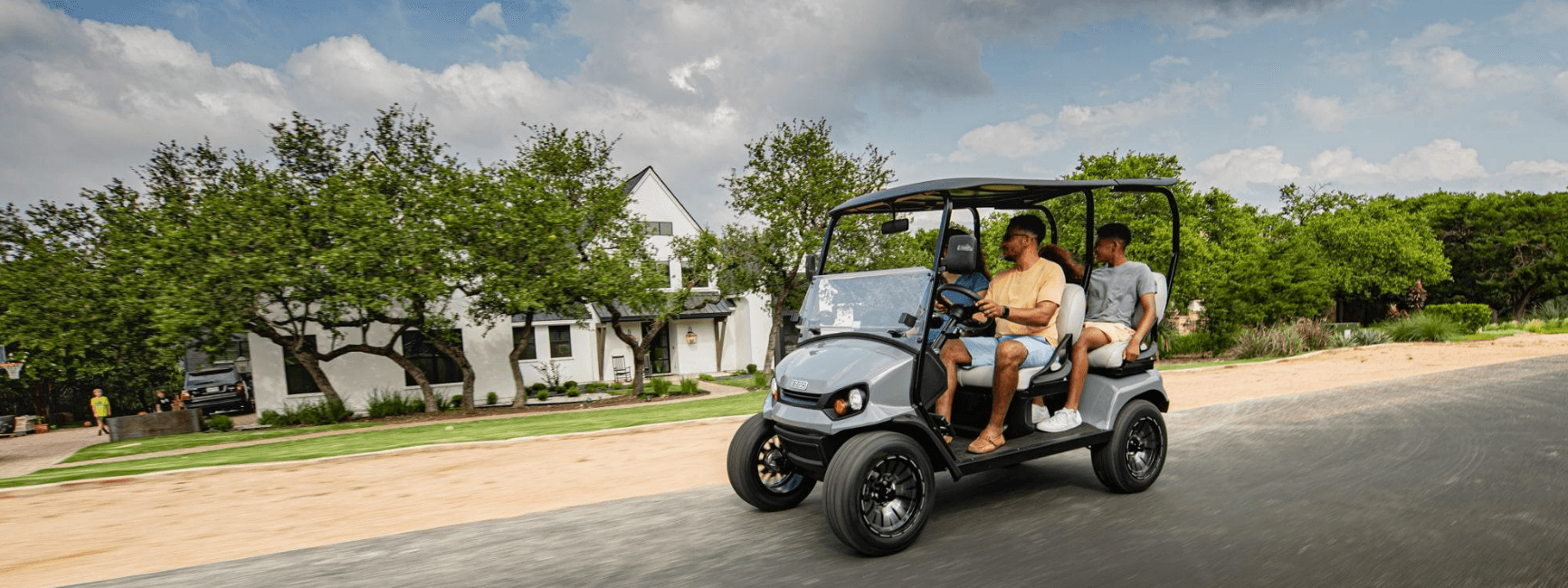

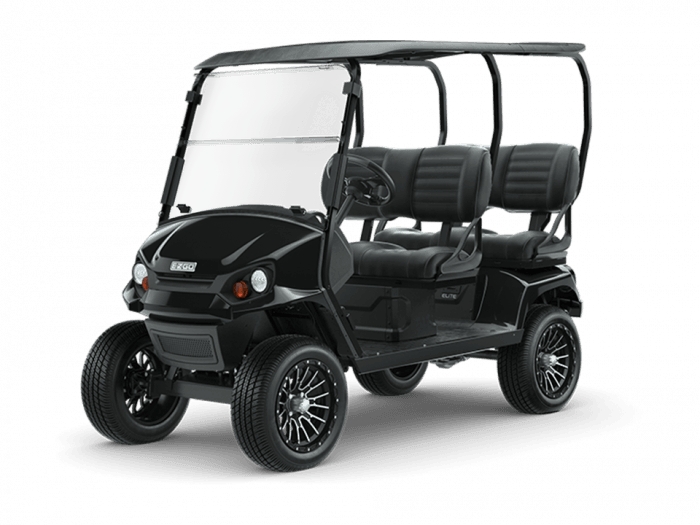

E-Z-GO LIBERTY
The all-new E‑Z‑GO® Liberty is a first-of-its-kind vehicle pushing everything in a new direction with its four-forward facing seats. As an ELiTE lithium vehicle the E‑Z‑GO Liberty is powered by a proven, maintenance-free Samsung SDI lithium battery system that will propel your next adventure. Make the best of every moment while experiencing unmatched maneuverability, increased comfort and more performance. Explore your next adventure with the E‑Z‑GO Liberty.
Standard Features
• Lightweight Portable Charger,
• Trim Package (Your Choice of one. Subject to stock Availability)
- Black Premium Seats with Black Roof
- Grey Premium Seats with Black Roof
- Mushroom Premium Seats with Black Roof
- Mushroom Premium Seats with Stonebeige Roof
• Commuter Package (Includes all of the below)
- Kinetica 185/60-14 Tyres with SPDR Alloy Wheel
- Turn Signals with Horn
- Large Fender Flares
- 19.5 MPH Speed Setting

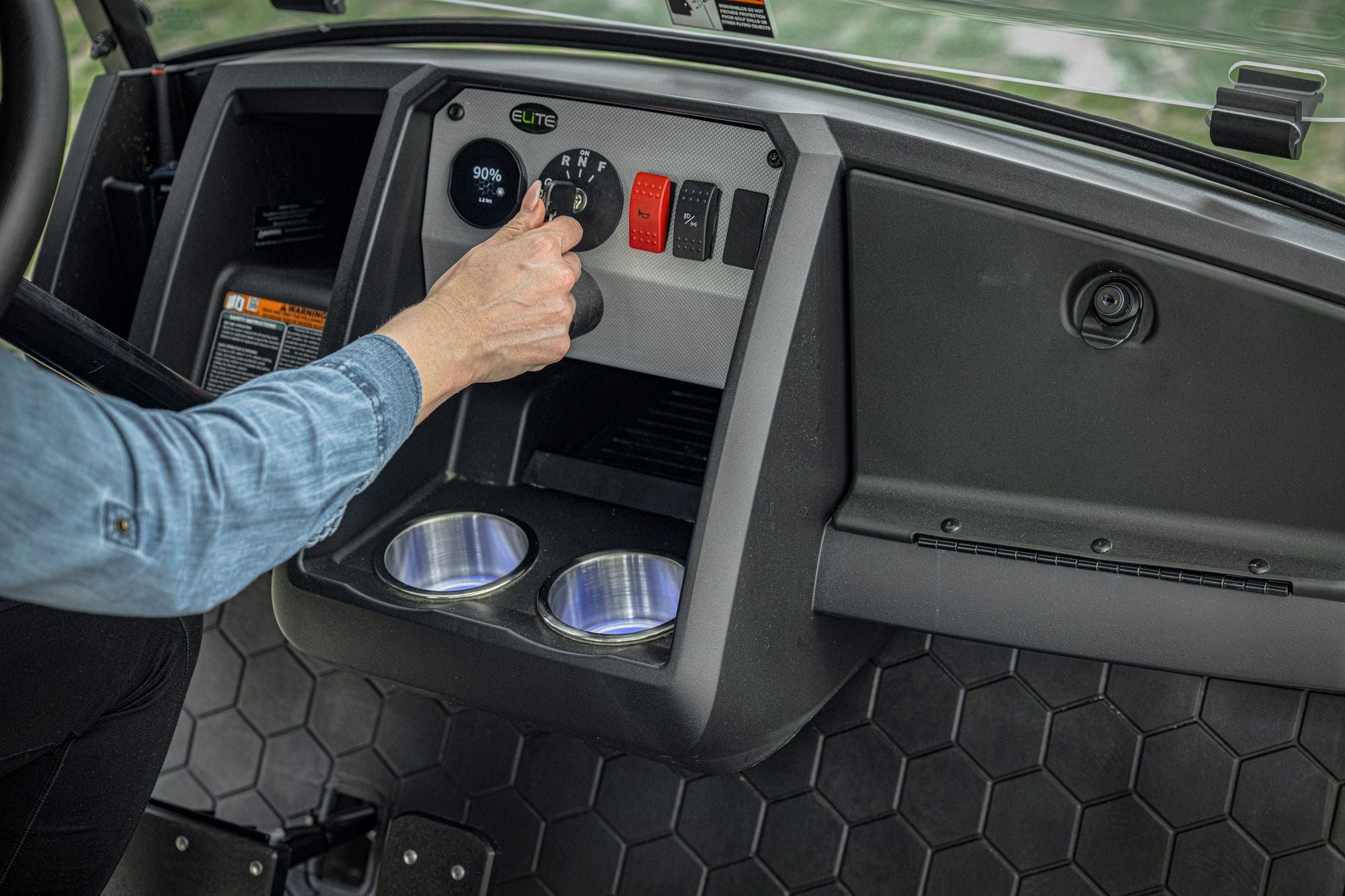

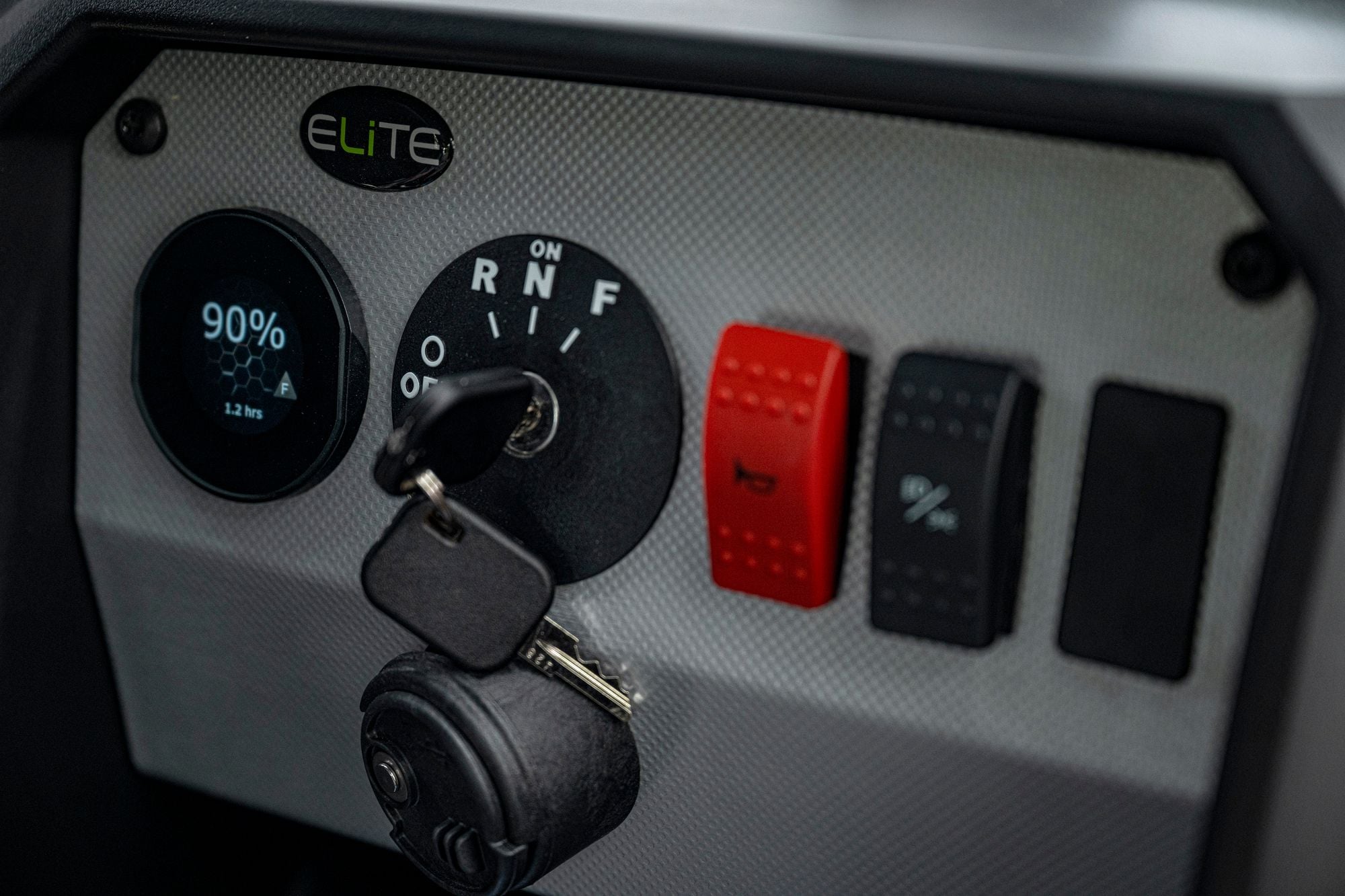

• Guage with Speed, State of Charge and Hour Meter
• Injection Moulded TPO Body Finish
• Premium Interior (Includes all of the below)
- Silver Dash
- Cup Holders with Lighting
- Individual Key Switch
- Glove Box Door
- Mats
- Shelf
• Premium Steering Wheel
• Convex Rear View Mirror
• 2” Receiver Hitch with quiet connection

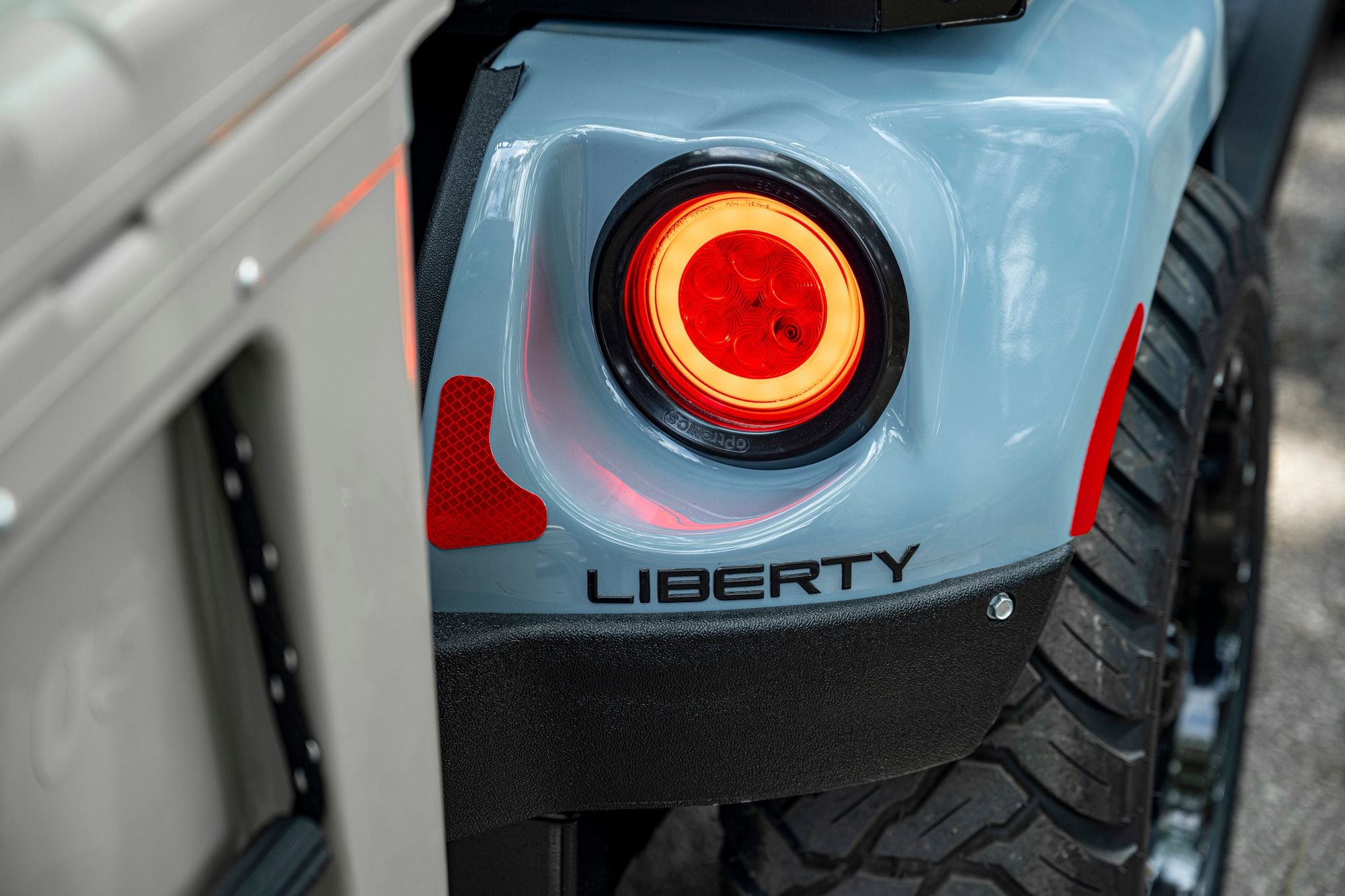

• LED Tail & Brake Lights
• LED Headlights
• DC Converter
• USB Ports
• Choice of Standard Colour
Options/Accessories
• Radio/Stereo
• Storage Tray (Hitch Mounted)
• Four Golf Bag Holder
• Trunk
• Retractable Seat Belts
• Side Mirror Kit
• Sound Bars
• Light Bars, Under vehicle Light Kits
• Pedal Guard
Specifications
DIMENSIONS
OVERALL LENGTH 106.5 in (271 cm)
OVERALL WIDTH 48 in (122 cm)
OVERALL HEIGHT (W/O ROOF) 54.5 in (138cm)
OVERALL HEIGHT (W/ ROOF) 78 in (198 cm)
WHEEL BASE 76 in (193 cm)
FRONT WHEEL TRACK 37.5 in (95 cm)
REAR WHEEL TRACK 39 in (99 cm)
GROUND CLEARANCE @ DIFFERENTIAL 7 in (18 cm)
POWER
POWER SOURCE 56.7V DC
MOTOR TYPE AC Induction
HORSEPOWER (KW) 11.7 hp (8.7 kW)
ELECTRICAL SYSTEM 56.7V
BATTERIES (QTY/TYPE) Single, 56.7V Li-Ion Composite Module (Standard Configuration)
KEY OR PEDAL START Pedal
BATTERY CHARGER 56.7V 350 W Domestic Charger, 3m Charging Cord
SPEED CONTROLLER 235 amp AC controller
DRIVETRAIN Motor Shaft Direct Drive
TRANSAXLE Differential with Helical Gears
GEAR SELECTION Dash Mounted FNR/Key Switch
REAR AXLE RATIO 16.99:1 (Forward)
PERFORMANCE
SEATING CAPACITY 4-passenger
DRY WEIGHT 854 lb (387 kg) (without batteries)
CURB WEIGHT 900 lb (408 kg)
DASH/ IP STORAGE CAPACITY 1123 in²
VEHICLE LOAD CAPACITY 800 lb (364 kg)
REAR CARGO RACK LOAD CAPACITY 100 lb (45.6 kg)
TURNING RADIUS 12.85 ft (3.92m)
OUTSIDE CLEARANCE CIRCLE 25.7 ft (7.83 m)
SPEED (LEVEL GROUND) 19.5 mph (31 kph) +/- 0.5 mph (0.8 kph)
STEERING & SUSPENSION
STEERING Self-Compensating Reduction Rack and Pinion
SUSPENSION Leaf Springs with Hydraulic Shock Absorbers
SERVICE BRAKE Dual rear wheel mechanical self-adjusting drum
PARKING BRAKE Self-compensating, single point engagement
TIRES Paramount M/T 23x10-14
BODY & CHASSIS
FRAME Welded Steel with DuraShield Powder Coat
FRONT BODY & FINISH Injection Molded TPO
BACK BODY & FINISH Thermoform ABS
AVAILABLE BODY COLORS Black, Bright White, Flame Red, Ocean Grey, Slate, Metallic Charcoal
AVAILABLE SEAT COLORS Gray on Black
AVAILABLE PREMIUM SEAT COLORS Black, Mushroom, Gray
