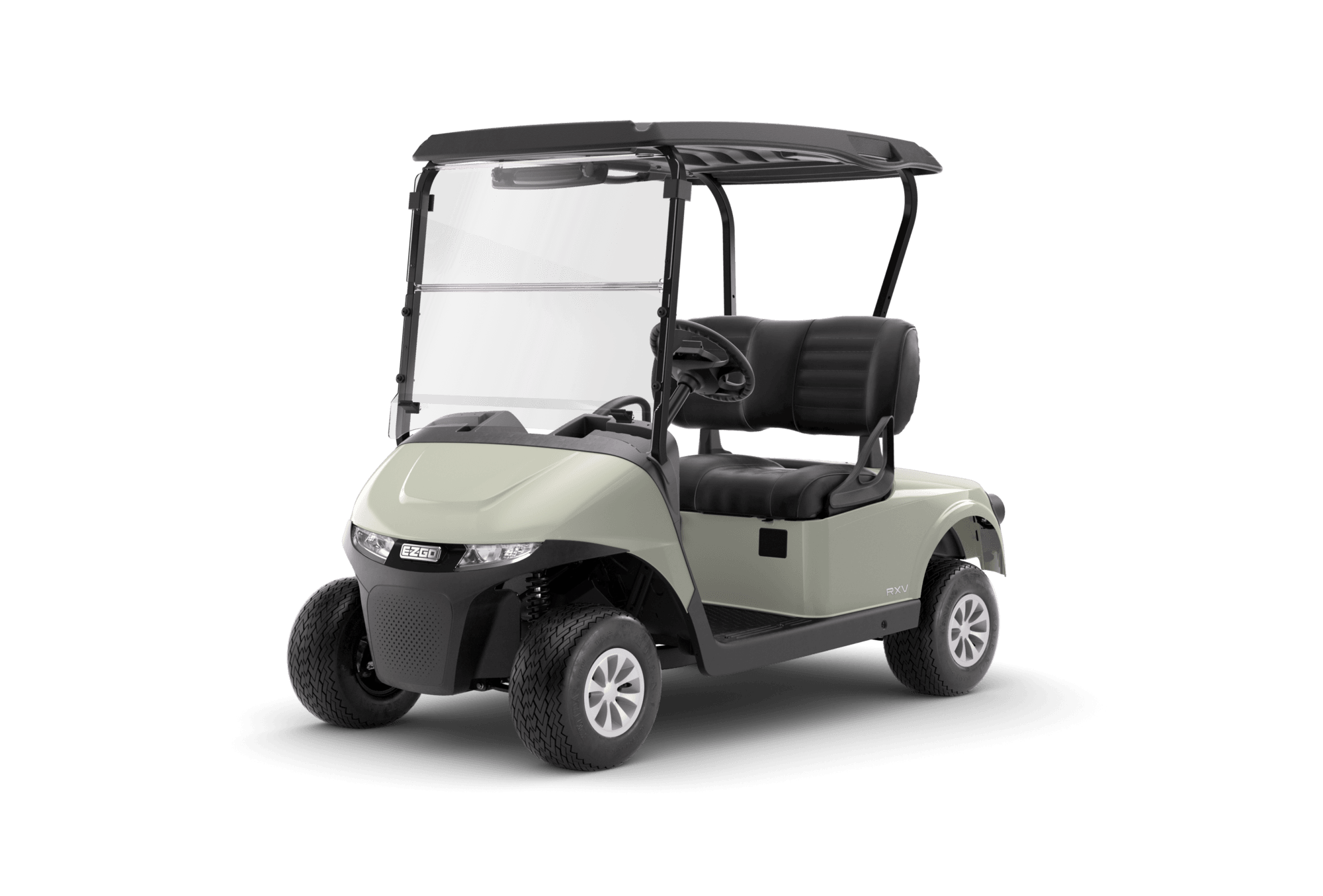

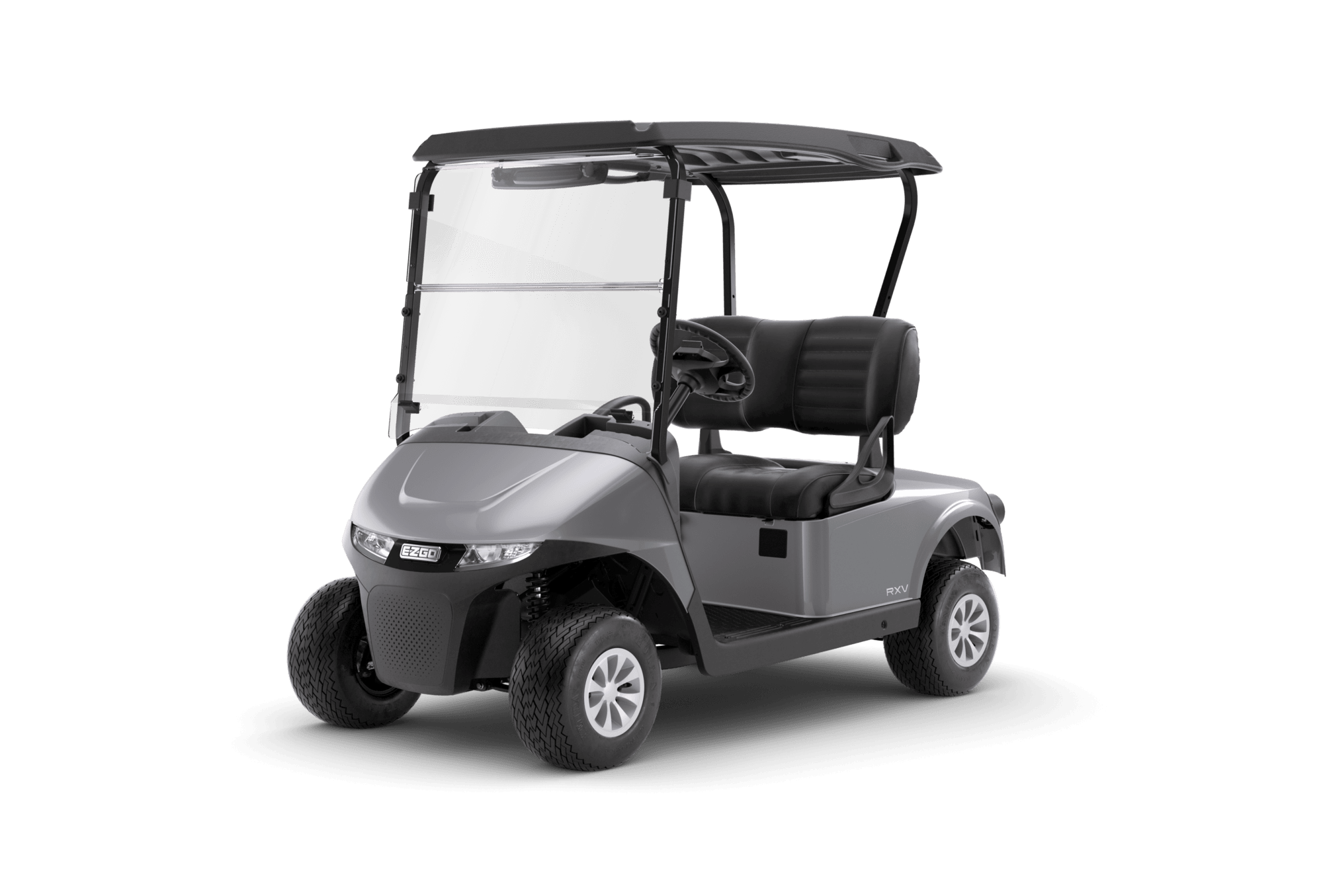

Freedom ELiTE RXV - AC Electric 48v
From rides around the neighborhood to quick errand runs, the E-Z-GO® Freedom® RXV® is designed to help you enhance your lifestyle. Choose between the electric model's patented AC drive, the low-emission, 13.5-hp gas-powered model, or the maintenance-free Freedom RXV ELiTE. No matter where the day takes you, let the Freedom RXV get you there.
Standard Features
- 1 x Samsung Lithium Ion 2.2 Maintenance Free Battery Pack Including Battery Management System
- 48v Delta Q DC Lightweight Portable Charger,
- Oyster, Black or Stone Beige Top Assembly & Seating
- 1 x Sand Bottle
- Split Windshield (Clear or Tinted)
- State of Charge Meter
- Scuff Guards,
- Injection Moulded TPO Body finish
- Metallic Hubcaps ( Gold or Silver)
- Automatic E Park Brake
- AC Motor
- Induction Service Motor Brake
- Unique Key switch
- Head Tail & Brake Lights
- Turn Signals
- DC Converter
- Pin Striping
- Horn and Reverse Beeper
- Choice of Colour
Options/Accessories
- All Weather enclosure ( Clear or Tinted)
- 10", 12" or 14" Mag Wheels
- Club & ball washer
- Drinks Cooler Esky
- Lockable Glovebox doors
- Rearview mirror
- Dual USB port
- Custom Seats
- Premium Steering Wheel
- Beverage Trays
- Storage Net
- Rubber Floormat
- Rainbag Cover
- Passenger Scorecard Holder
- LED Headlights/Day time running lights
- Economy 4 Seat Kit
- Front and Rear Fender Flares
- Radio/Stereo
Specifications
Dimensions
Overall Length: 238 cm
Overall Width: 119 cm
Overall Height (no canopy): 118 cm
Overall Height (with canopy): 177 cm
Wheel Base: 168 cm
Front Wheel Track: 88 cm
Rear Wheel Track: 98 cm
Ground Clearance (at differential): 10 cm
Power
Power Source: 48 Volts DC
Motor Type: 48 Volt AC
Electric System: 48 Volt
Battery (qty/type): 1 Samsung Lithium Ion 90 Amp Maintenance Free Battery Pack ( Including Battery Management System)
Key or Pedal Start: Pedal Start
Battery Charger: Lithium World Charger 48VDC
Speed Controller: 235 Amp AC Controller
Drive Train: Motor Shaft Direct Drive
Transaxle: Limited Slip Differential
Gear Selection: Forward-Neutral-Reverse Integrated into Key Switch
Rear Axle Ratio: 16.99:1
Key Switch: Unique Group, Unique Individual
Programmable Golf Modes: Coastal, Mild Hill, Steep Hill
Performance
Seating Capacity: 2 Person
Dry Weight (without battery): 351 Kg
Curb Weight: 351 Kg
Vehicle Load Capacity: 360 Kg
Outside Clearance Circle: 5.8 m
Intersecting Aisle Clearance: N/A
Speed (level ground): 28 - 30 kph ± 0.8 kph
Towing Capacity: 3 E-Z-GO Golf Cars with Approved permanent tow bar
Steering & Suspension
Steering: Double-ended Rack and Pinion
Front Suspension: Independent A-arm Coil over Shock
Rear Suspension: Mono Leaf Springs with hydraulic Shocks
Service Brake: Induction Motor
Parking Brake: Automatic Electro Magnetic
Tyres: Turf Tyres 18 x 8.5 - 8 (4 Ply Rated)
Body & Chassis
Frame: Welded steel with powder coat protection
Front Body & Finish: Injection Moulded, TPO
Rear Body & Finish: Injection Moulded, TPO

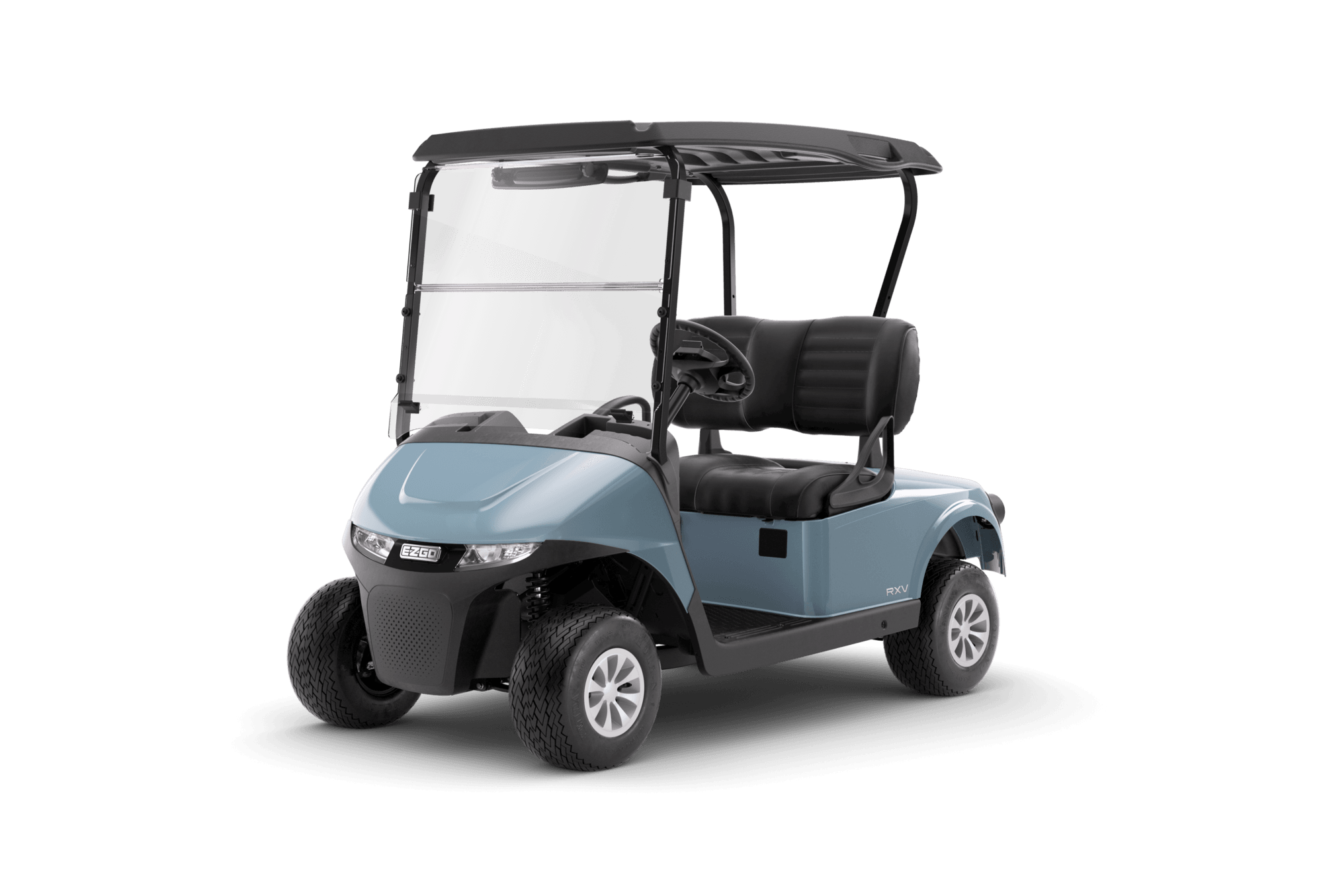

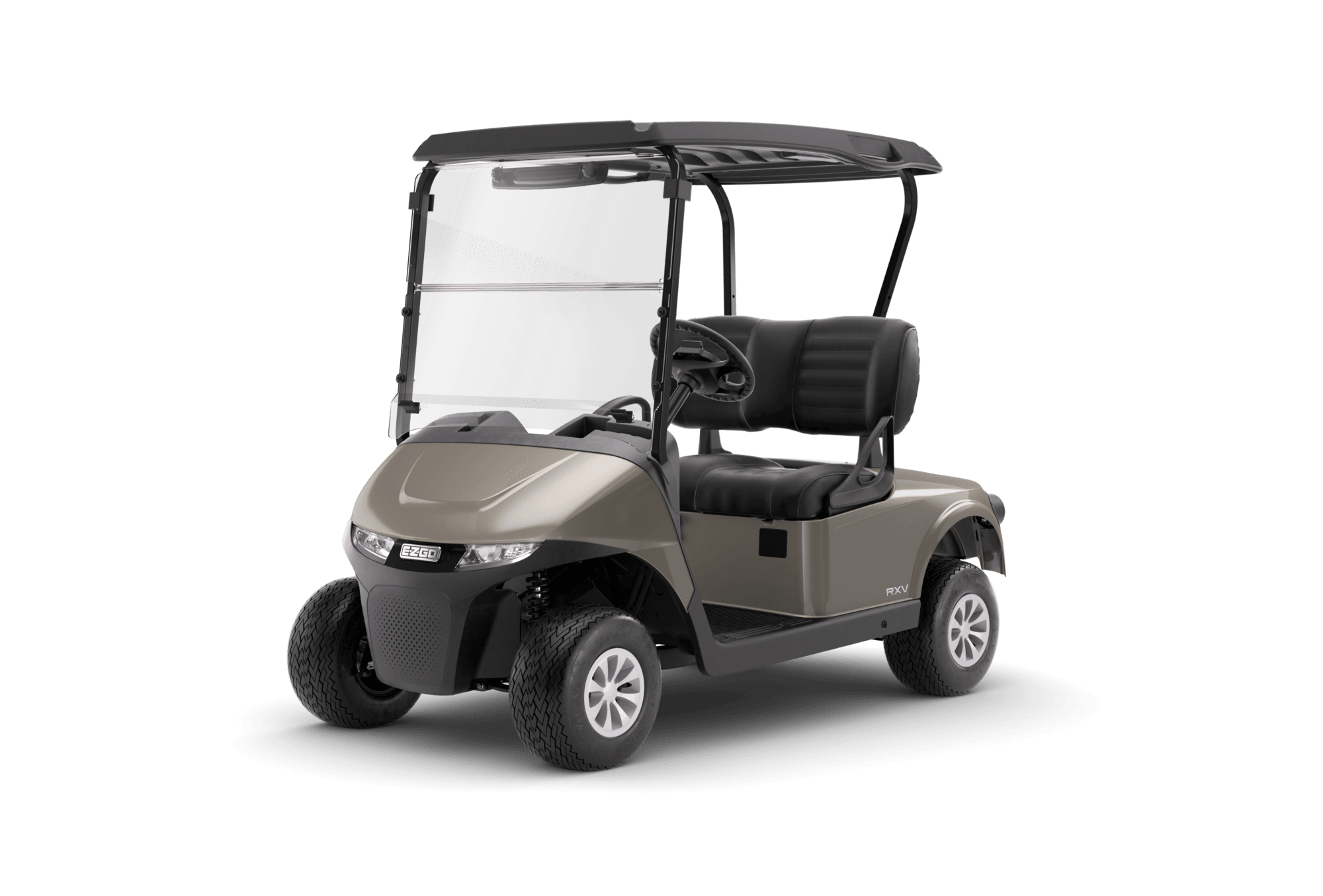

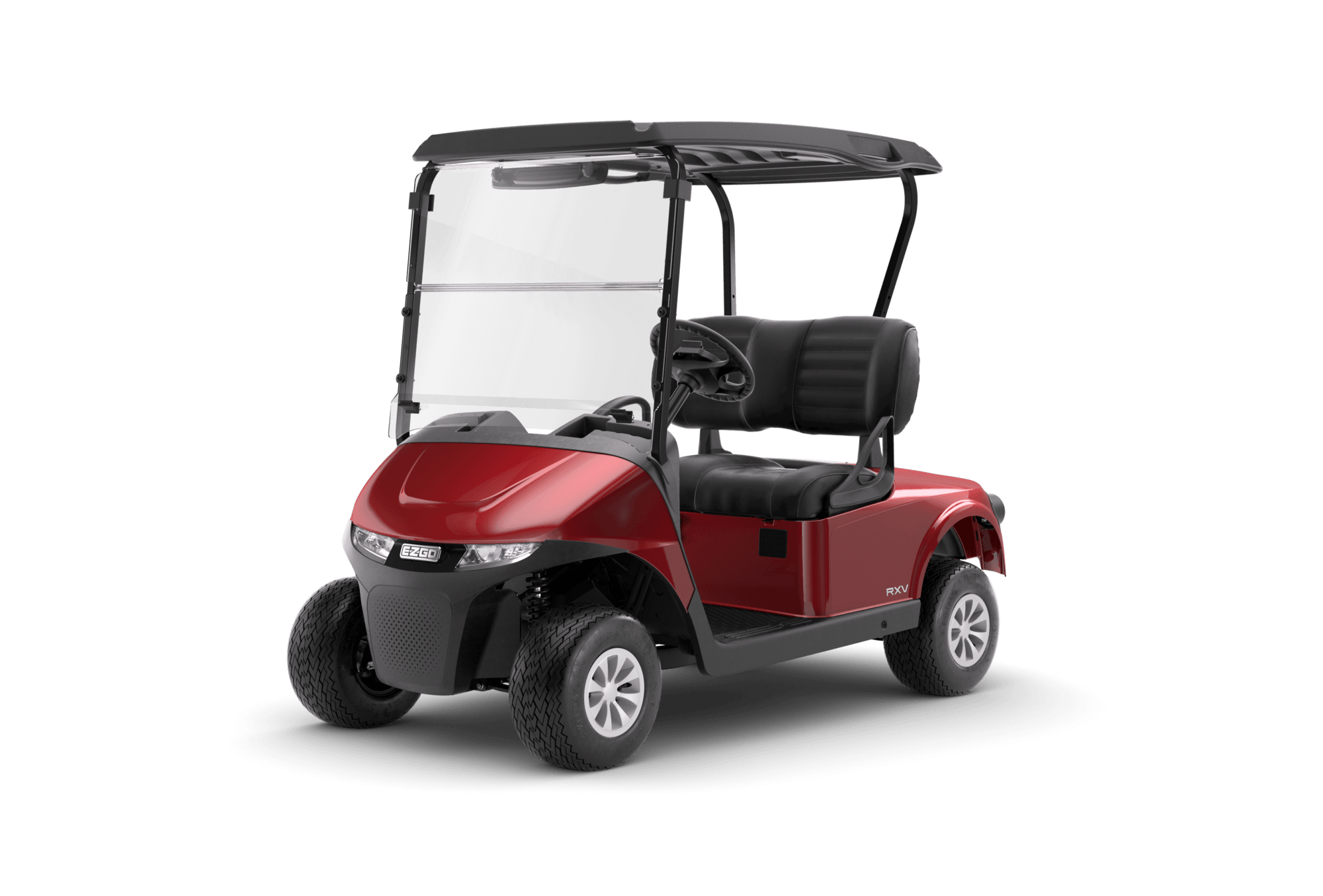

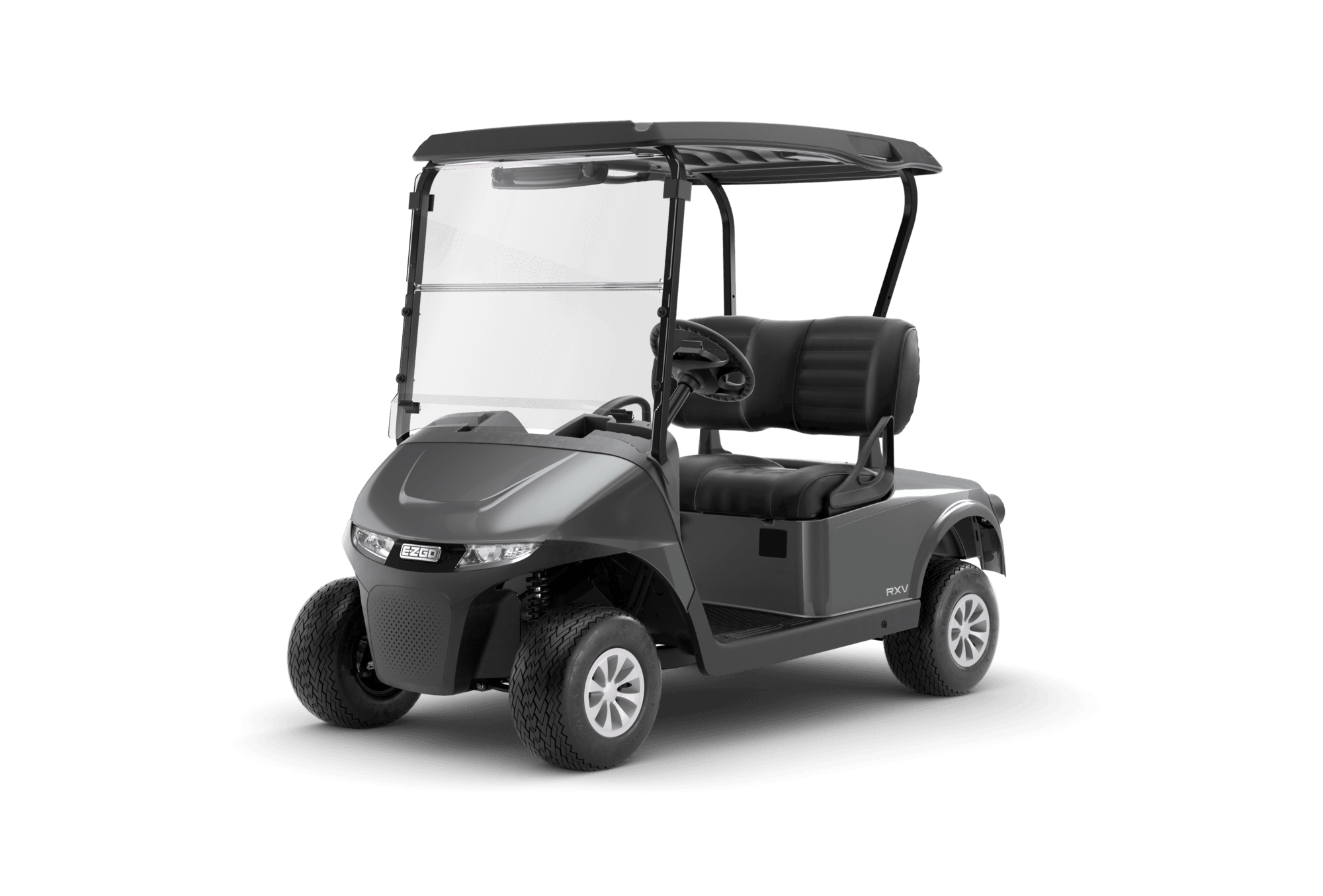

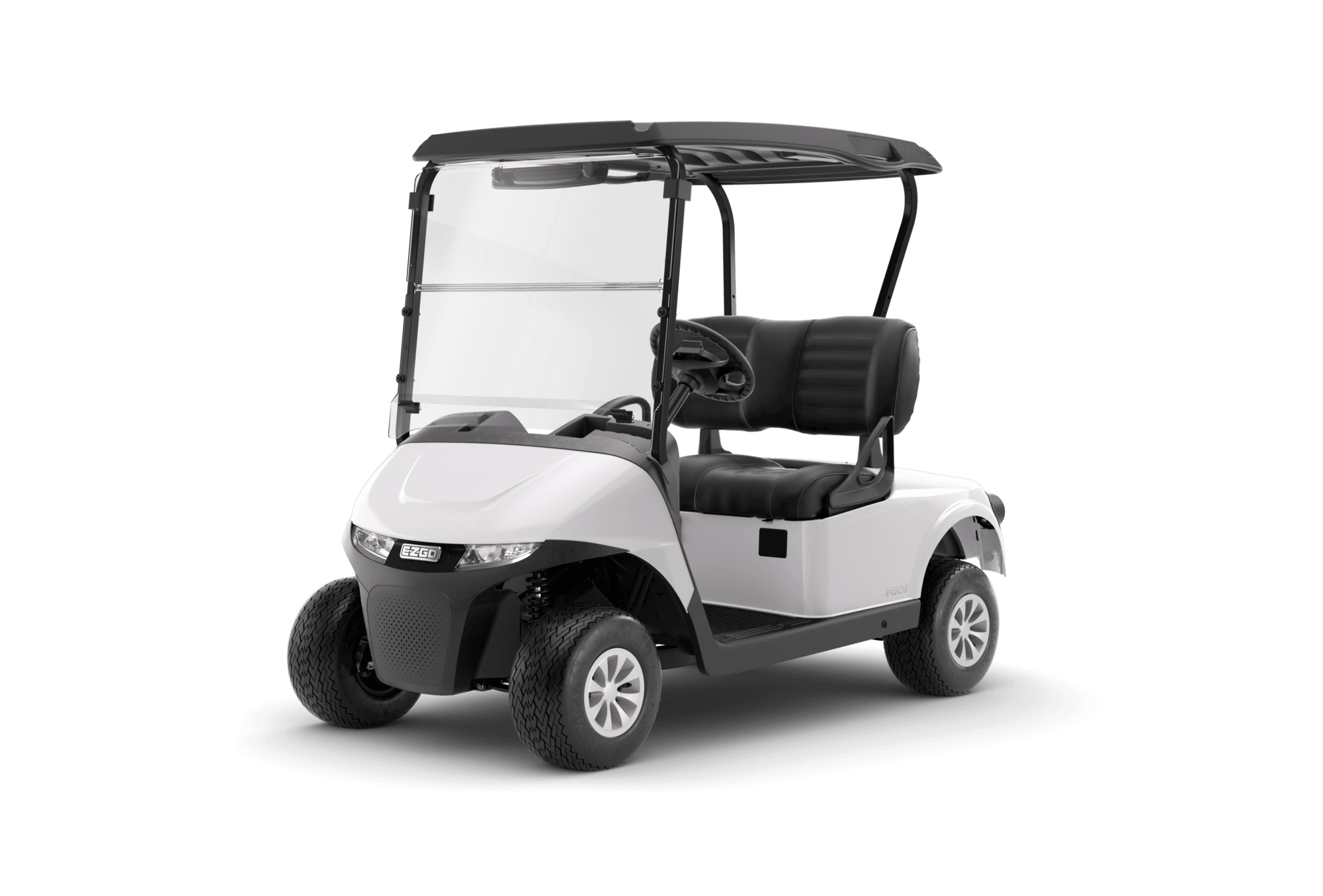

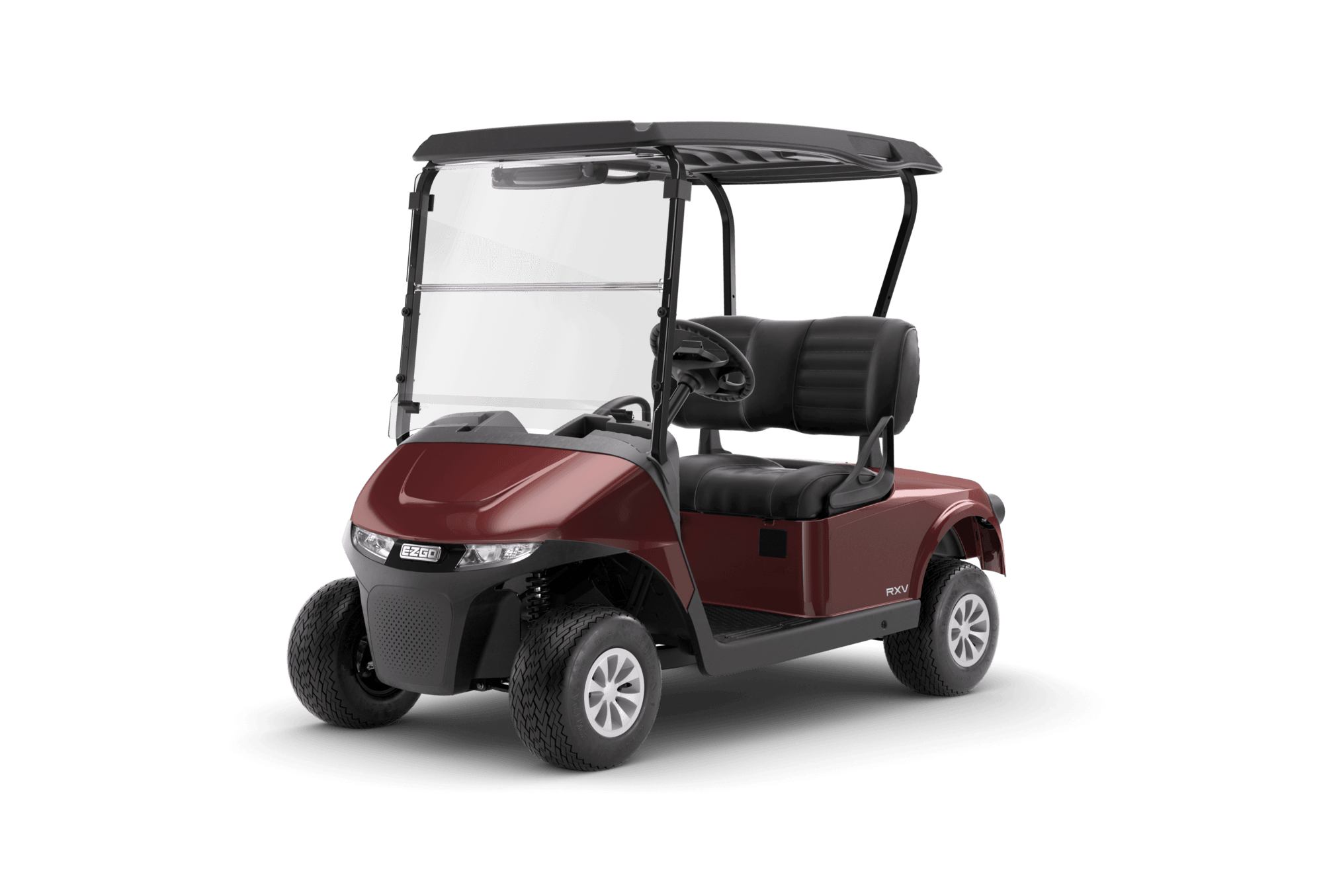

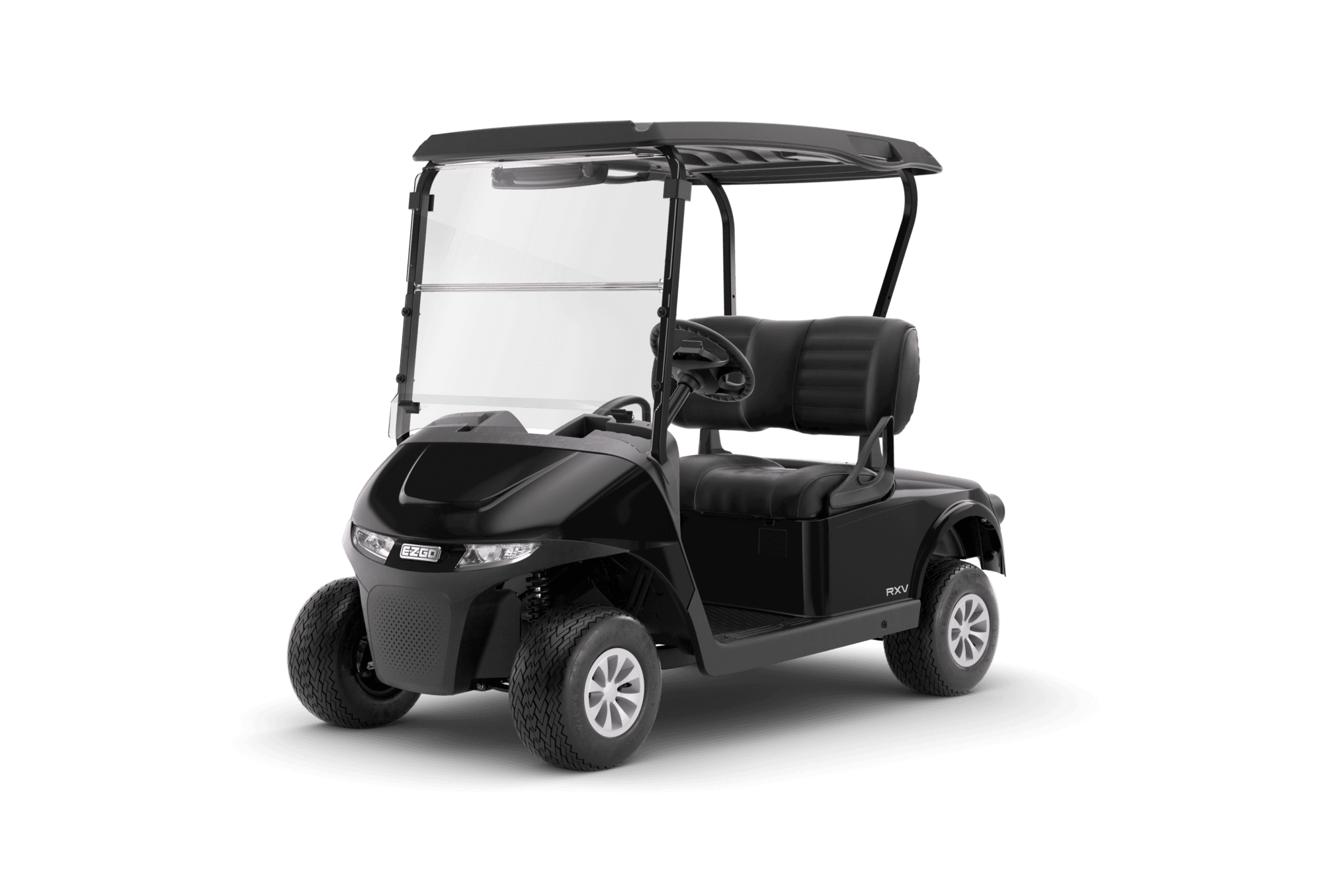

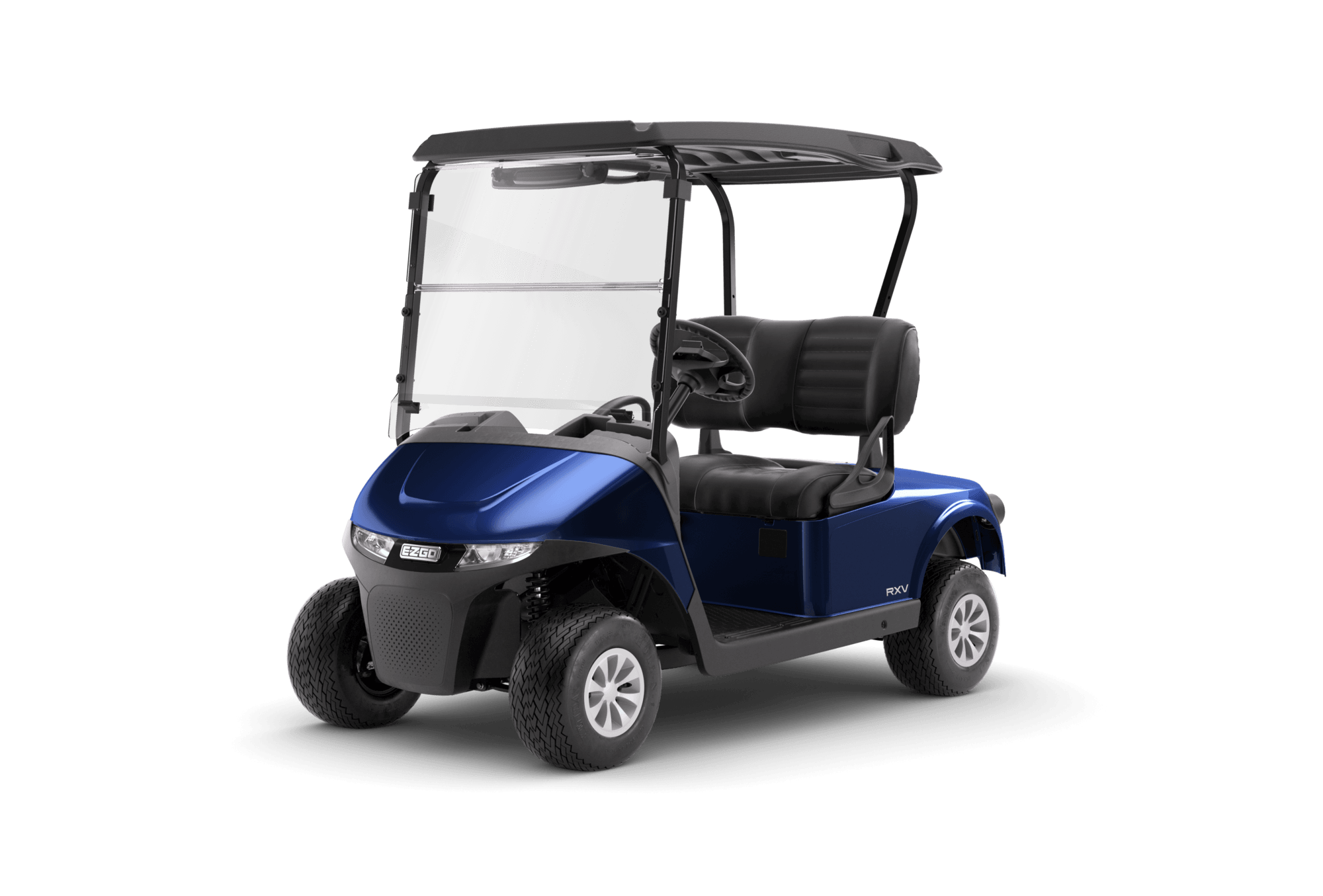

Standard Colour: Almond, Black, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Metallic Charcoal, Orange, Patriot Blue, Platinum, White
Standard Seat Colour: Stone Beige
Optional Seat Colours: Black or Oyster
)
