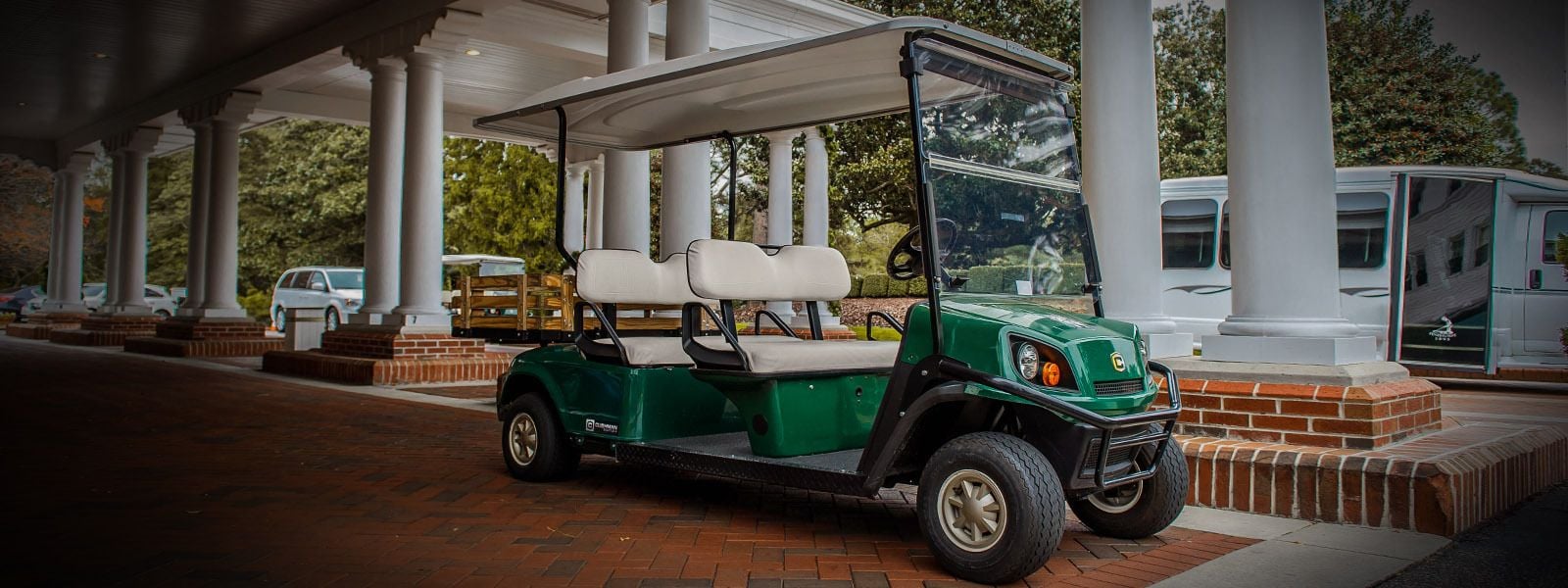

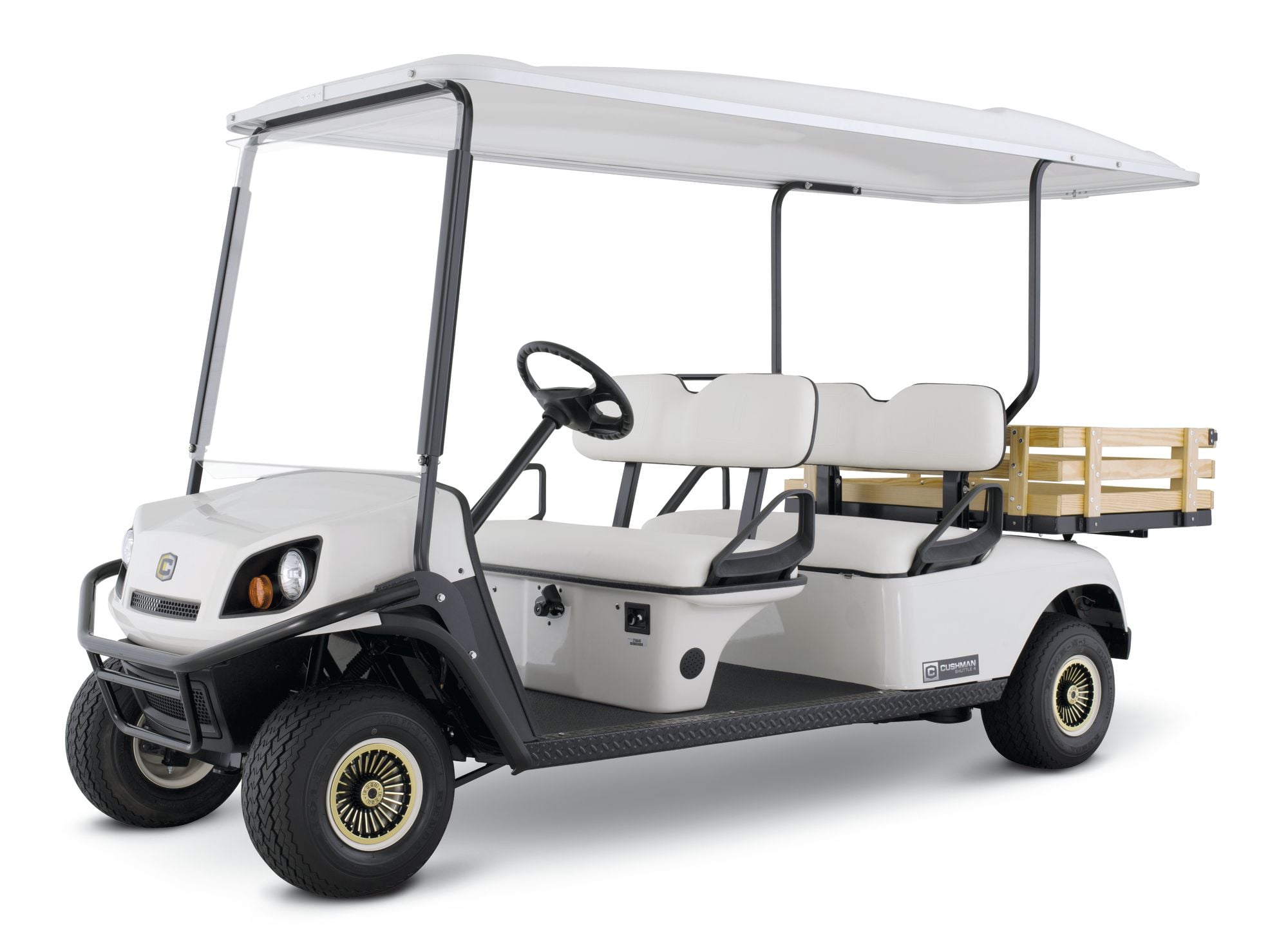

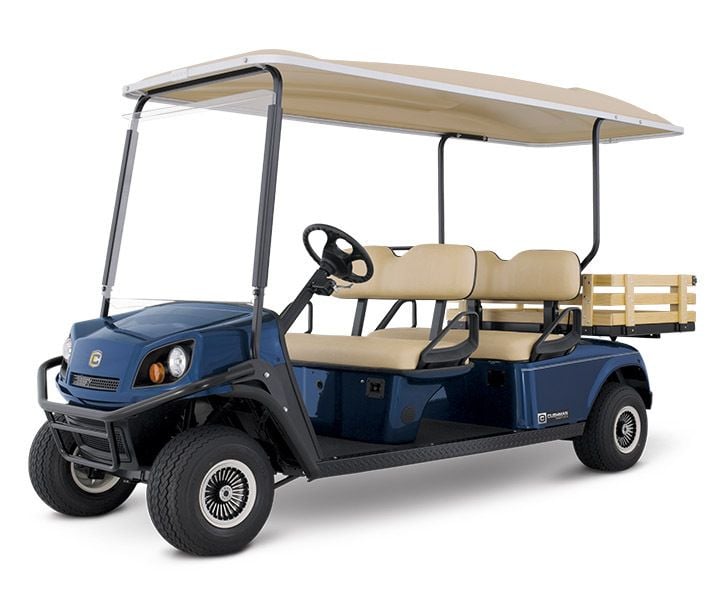

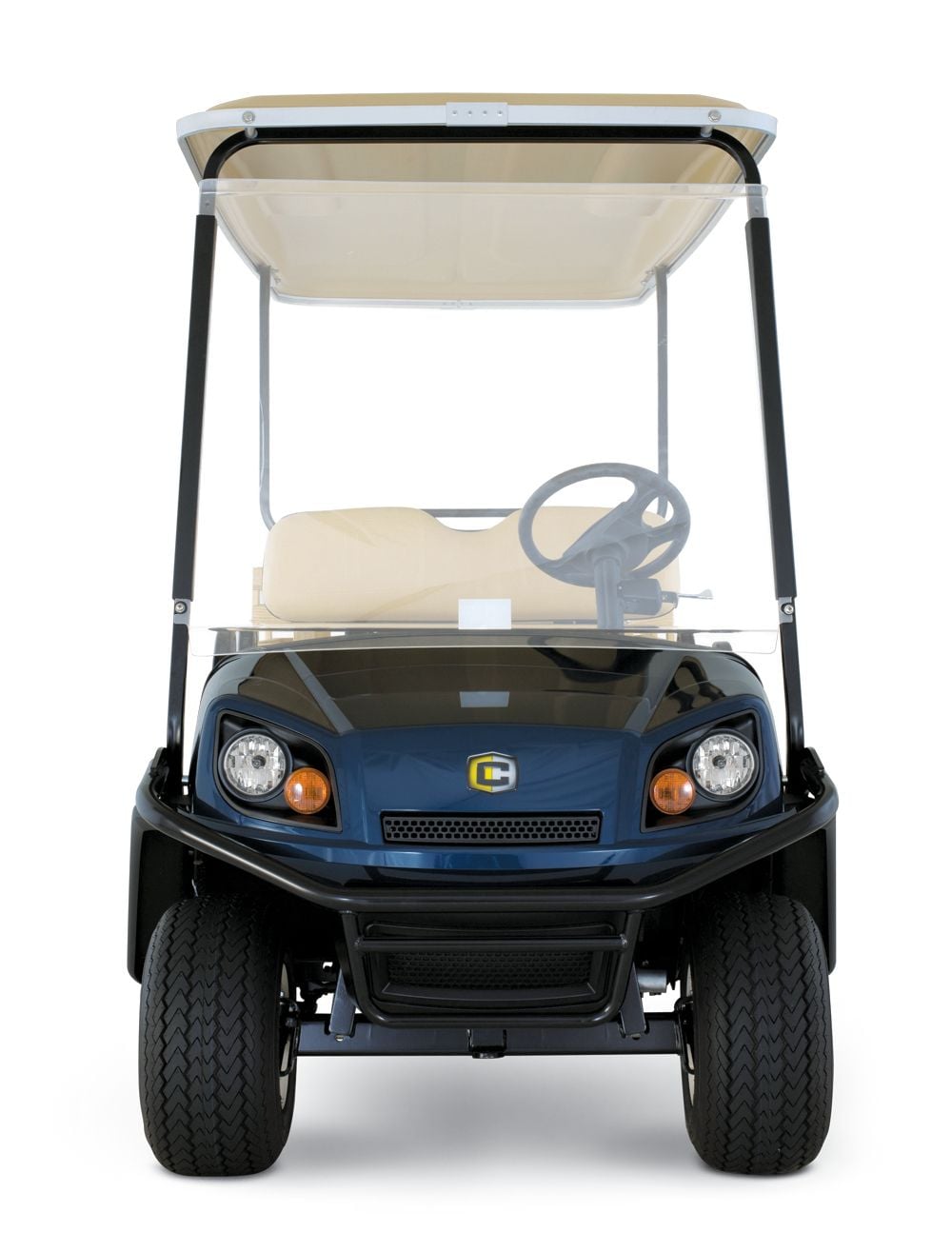

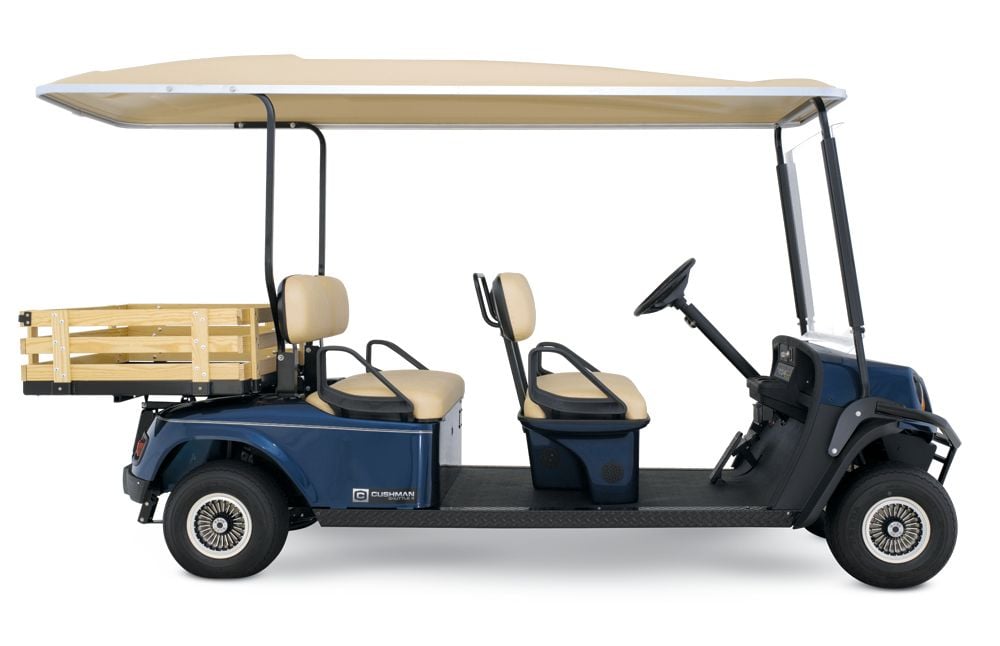

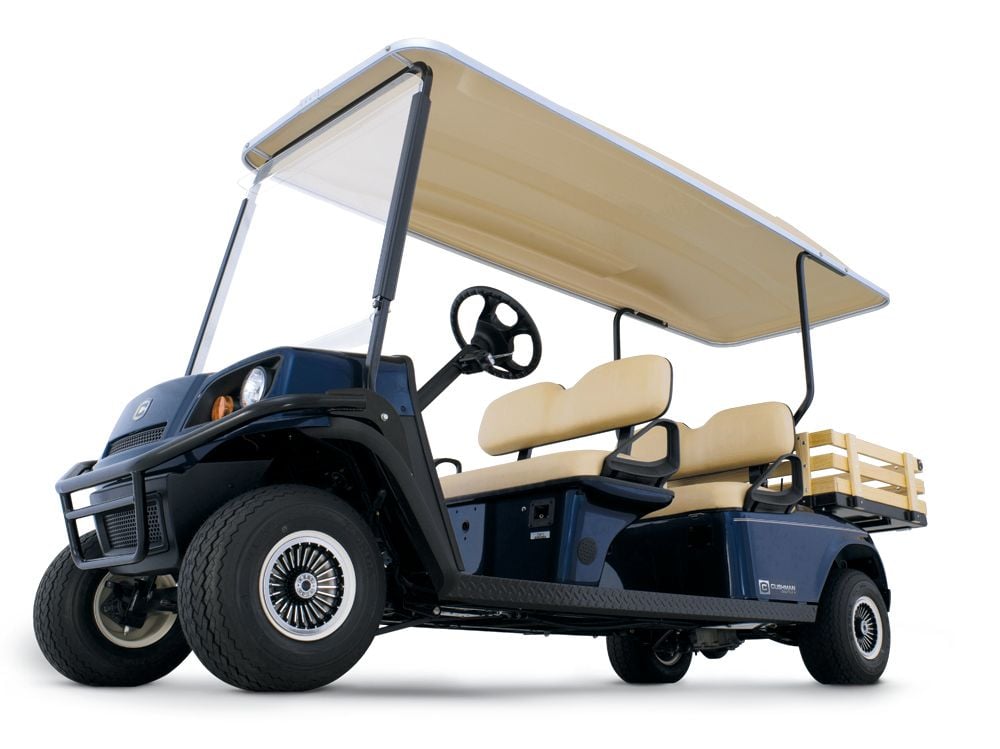

Shuttle 4 - Electric

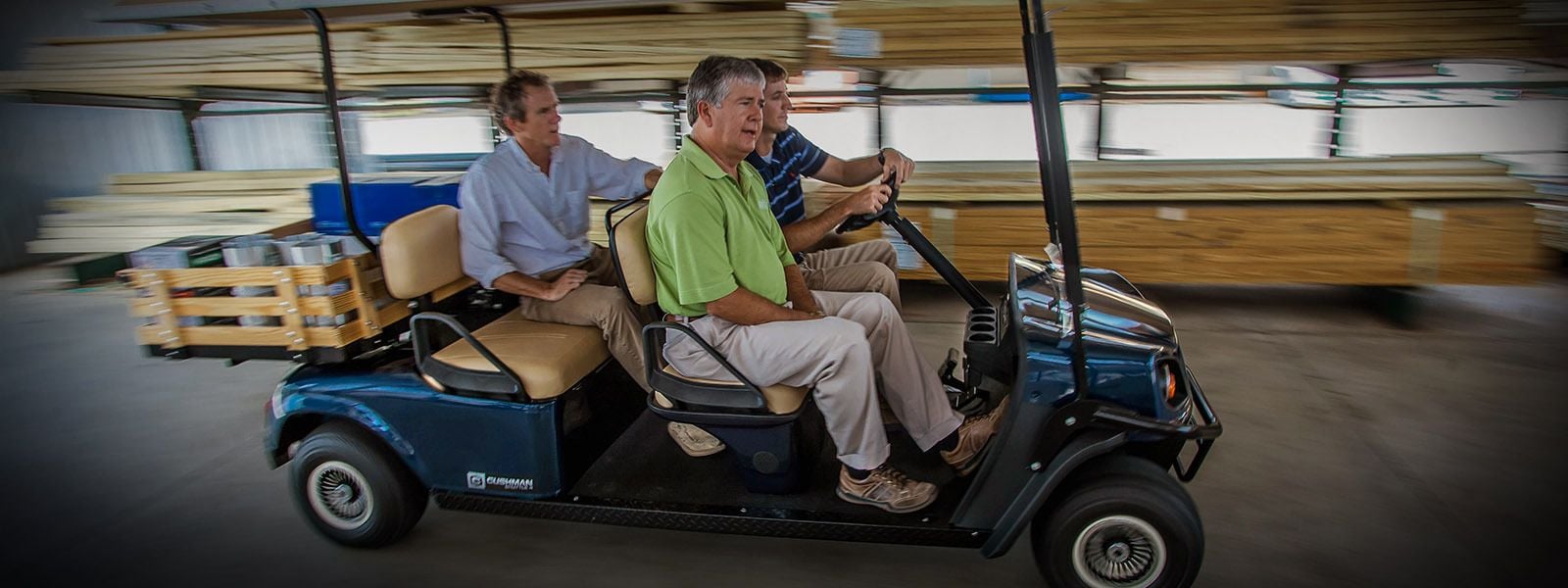

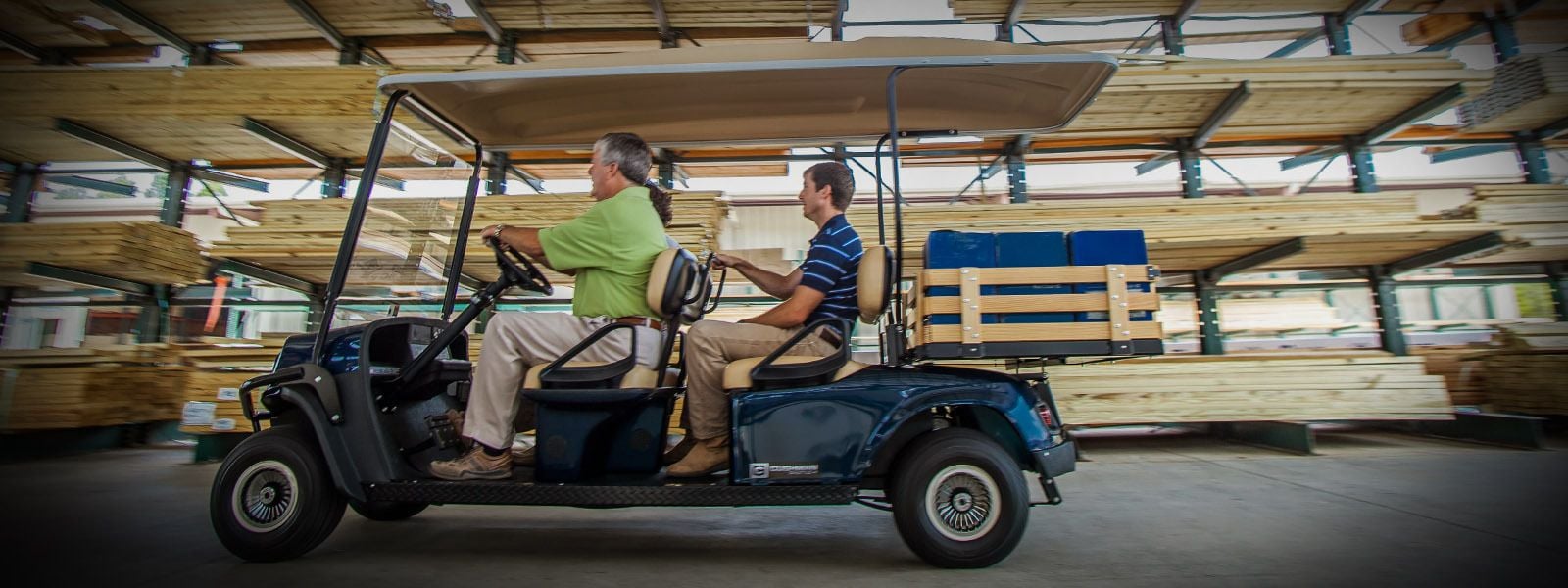

Throw your bags and supplies in the back and let's get moving. The Shuttle 4 offers extra space for luggage, gear and more, so you can help workers, guests and volunteers get all their stuff wherever it needs to go quickly.
Specifications
Dimensions
Overall Length: 339 cm
Overall Width: 119 cm
Overall Height (with canopy): 183 cm
Wheel Base: 237 cm

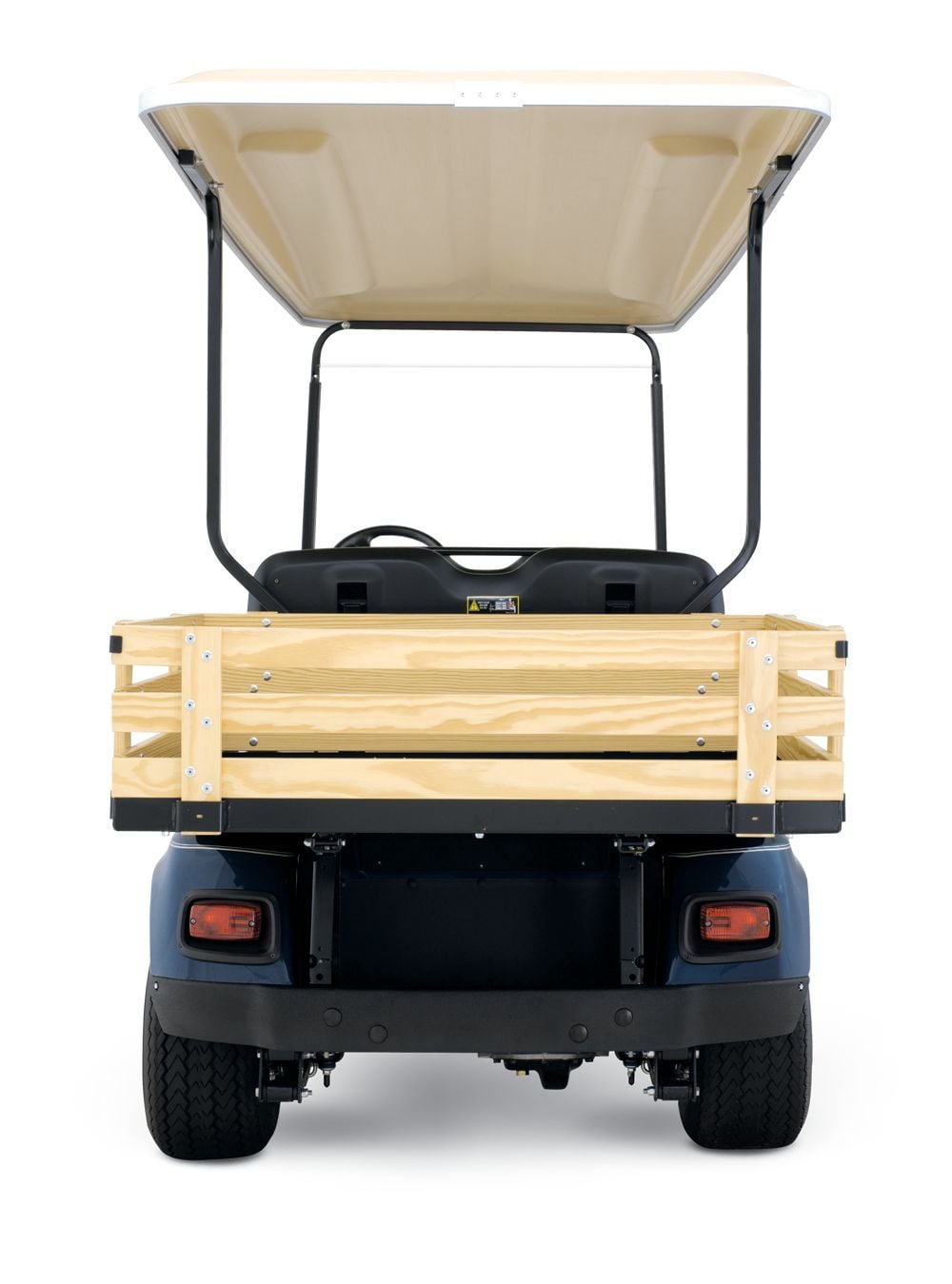

Cargo Box Capacity: 9 Cu ft (0.25m³)
Cargo Box Material: Wood Stake Sides
Power
Powertrain: 48 Volts DC Shutn Wound
Horsepower: 22.4 HP ( 16.7 kW) Peak
Electric System: 48 Volt
Battery (qty/type): Eight, 6 Volt Deep Cycle
Key or Pedal Start: Pedal Start
Battery Charger: 48 VDC Delta Q, 120/230 VAC, UL & CSA
Speed Controller: 400 Amp Precision Drive System (PDS)
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse
Rear Axle Ratio: 14.7:1
Performance
Seating Capacity: 4 Person
Dry Weight (without battery): 325 Kg
Curb Weight: 545 Kg
Vehicle Load Capacity: 544 Kg
Bed Load Capacity: 181 Kg
Outside Clearance Circle: 7.8 m
Speed (level ground): 21 kph ± 0.8 kph
