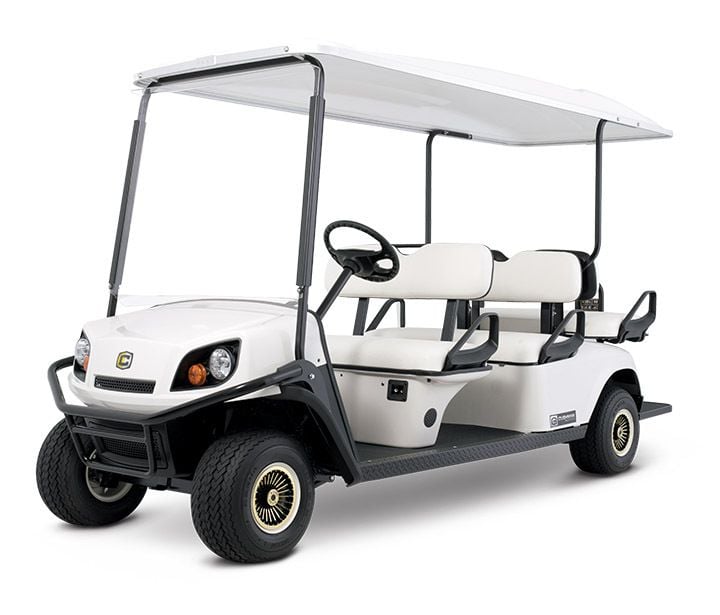

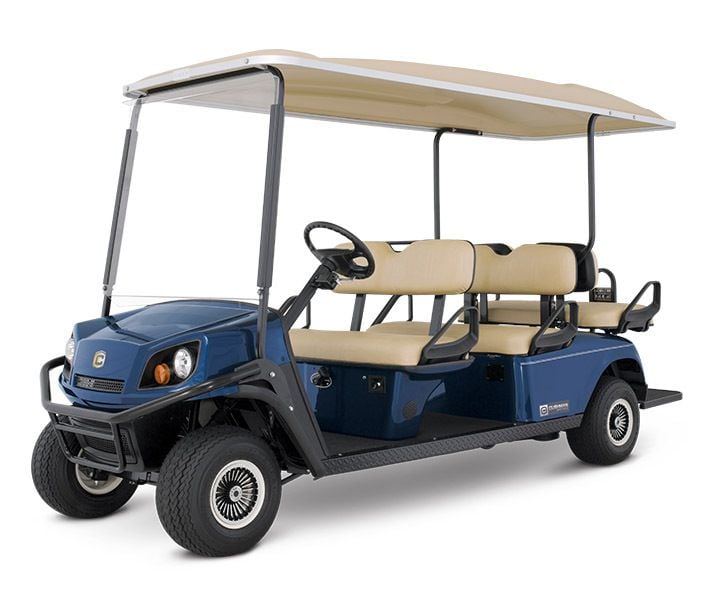

Shuttle 6 - Petrol
Take your people-moving power to the next level with the six-passenger Shuttle 6 personnel carrier. With spacious bench seating, headlights for early morning or late nights, and your choice of gas or electric powertrains, it always delivers a safe and comfortable ride.
Specifications
Dimensions
Overall Length: 345 cm
Overall Width: 123 cm
Overall Height (with canopy): 183 cm
Wheel Base: 237 cm
Power
Powertrain: 4 Cycle, 24.5 ci (401cc) Cylinder
Valvetrain: Single Cylinder OHV
Horsepower: 13.5 hp (10.1kW) Exceeeds SAEJ1940 Standard
Electric System: Starter/Generator. Solid State Reg
Battery (qty/type): One, 12v Maintenance Free
Key or Pedal Start: Pedal Start
Air Cleaner: Replaceable Dry Cartridge
Lubrication: Pressurized Oil System
Oil Filter: Spin On
Cooling System: Air Cooled
Fuel Capacity: 22.7 Litre
Drive Train: Continuously Variable Transmission
Transaxle: Differential with Helical Gears
Gear Selection: Forward-Reverse
Performance
Seating Capacity: 6 Person
Dry Weight (without battery): N/A
Curb Weight: 528 Kg
Vehicle Load Capacity: 544 Kg
Outside Clearance Circle: N/A
Speed (level ground): 26 kph ± 0.8 kph
