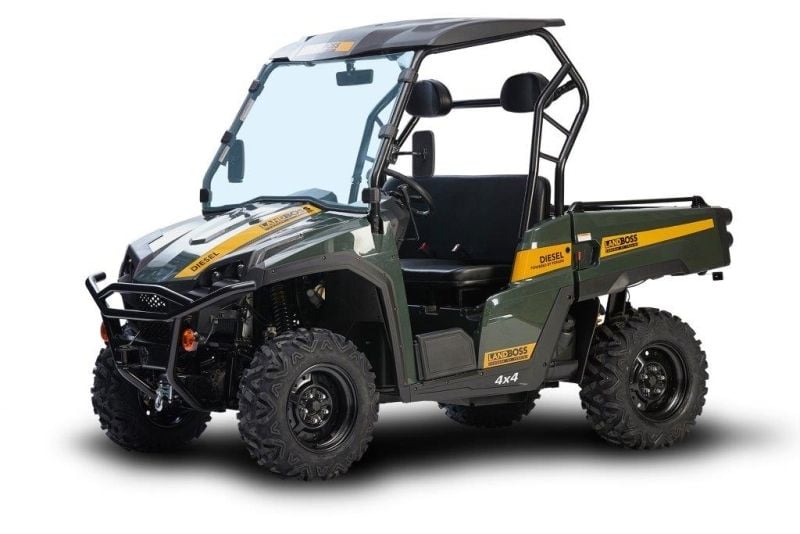

Landboss - Diesel 4x4
The Landboss EPS is built to work. Powered by an unbreakable Perkins diesel engine. The Landboss EPS features electronic power steering (EPS), selectable 2WD/4WD drive modes, a tough steel tip tray and over one tonne combined tow and carry capacity.
Standard Features
Standard Features
800cc Perkins 3 cylinder liquid cooled diesel engine
Canadian CVTech transmission
Selectable 2WD/4WD with front and rear differential lock and turf mode
Reverse beeper, a bench seat and seatbelts for added safety
Independent dual, A- ARM suspension
Steel tray with drop-down sides
More than one tonne total carrying capacity with 450kg cargo box, 700kg tow capacity and tow package included
Six ply tyres
ROPS certified roll frame
Electronic Power Steering
Options/Accessories
Specifications
Overall Length: 301.8 cm
Overall Width: 152 cm
Overall Height (with canopy): 190.5 cm
Wheel Base: 193 cm
Ground Clearance (at differential): 28 cm
Power Source: Perkins 403D-07
Valve Train: 3-Cylinder, In Line, Water Cooled Diesel
Key or Pedal Start: Electric
Cooling System: Liquid Cooled
Fuel Capacity: 35 L
Transmission: CVTech High/Low/Neutral, Reverse
Transaxle: Shaft Drive
Seating Capacity: 2 Person
Curb Weight: 700 Kg
Cargo Deck Capacity: 450 Kg
Front Suspension: Dual A-Arm Coil Over Shock
Rear Suspension: IRS Dual A-Arms coil over Shock
Service Brake: Dual Hydraulic Disk front, Hydraulic Disk Rear
)
)
