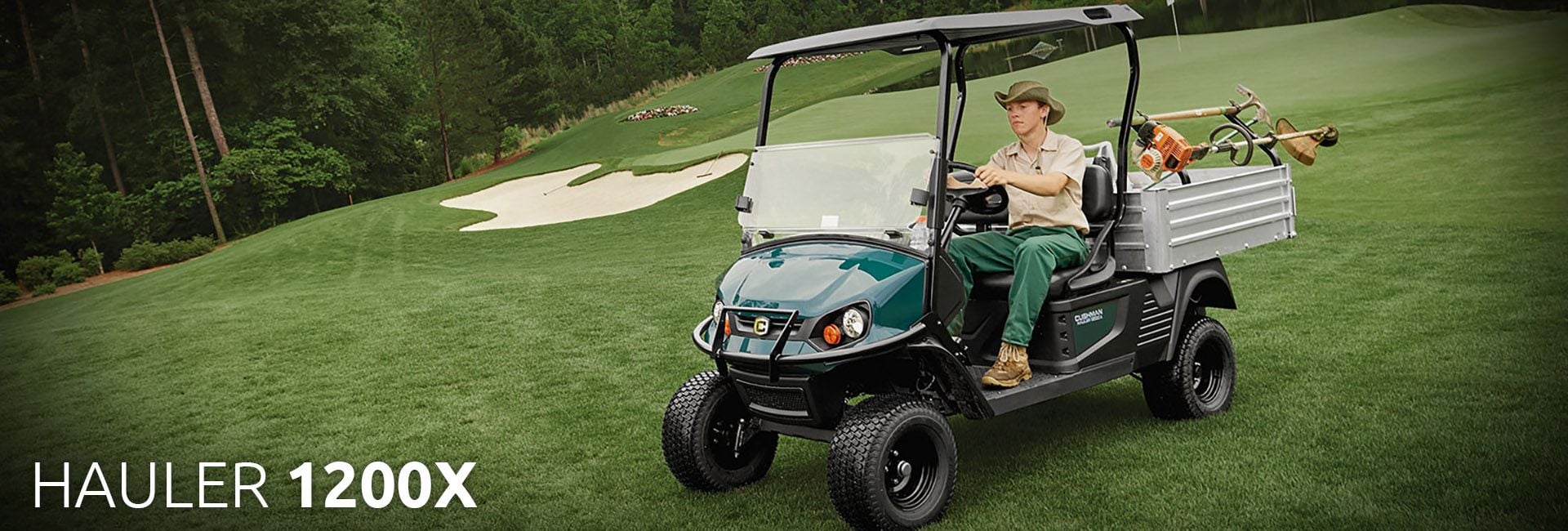

Hauler 1200X - EFI Petrol 13.5 hp
The Hauler® 1200X never backs down from a challenge. Armed with rugged tires, a lifted suspension and a dependable Kawasaki gas engine, it can take large loads of cargo wherever you need them.
Standard Features
- Kawasaki 13hp Single Cylinder EFI Engine
- Black Top Assembly & Grey Seating
- LED Headlights, Tail & Brake Lights
- Turn Signals
- Steel DuraShield Epoxy Coated Chassis
- Body Finish Injection Moulded TPO
- Low Fuel/Oil Gauge
- Hour Meter
- Front Black Bumper/ Brush Guard
- Unique Key Switch
- Fender Flare
- Rear Hitch Receiver
- Limited Slip Differential with Diff Guard
- 12-Volt Outlet
- Split Windshield
- Horn and Reverse Beeper
- K 500 20x 8- 10 (6 Ply) Wheels
- Comfort Grip Steering Wheel
- Plastic Bed or Alluminium Tray with Manual Gas Assisted Lift
- Raised Suspension
- Choice of Colours
Options/Accessories
- Bed Dividers
- Long-Handled Tool Holder
- Cargo Mesh Netting
- Flexible Tool Clamps
- L-Track Aluminum Bed System
- Tie Down D-Loops
- USB Outlet
- Canopy Storage Net
- ROPS-Certified Ball Cage
- All Weather Enclosure
- Rearview Mirror
- ROPS-Certified Cab
- Ladder/Hoop Rack
- Electric Bed Lift Upgrade
- Tow Hitch and 50 mm Tow Ball
Specifications
Dimensions
Overall Length: 302.3 cm
Overall Width: 125.5 cm
Overall Height (with canopy): 195.6 cm
Wheel Base: 196.9 cm
Front Wheel Track: 96.5 cm
Rear Wheel Track: 97.8 cm
Ground Clearance (at differential): 17.8 cm
Cargo Box Capacity: 12 Cu ft (0.34m³)
Power
Powertrain: 4-Cycle 24.5 ci(401cc)
Valvetrain: Single Cylinder OHV
Horsepower: 13.5 (10.1 kW)
Electric System: Starter/Generator. Solid-State Regulator
Battery (qty/type): One, Maintenance Free 12 V
Key or Pedal Start: Pedal Start
Oil Filter: Spin-On
Cooling System: Air Cooled
Fuel Capacity: 25 Litre
Drive Train: Continously Variable Transmission (CVT)
Transaxle: Differential with Helical Gears
Gear Selection: Forward-Reverse
Rear Axle Ratio: 11.47:1 (Forward) 14.35:1 ( Reverse)
Performance
Seating Capacity: 2 Person
Curb Weight: 455 Kg
Vehicle Load Capacity: 408 Kg
Bed Load Capacity: 227 Kg
Towing Capacity: 544 Kg
Outside Clearance Circle: 7.2 m
Speed (level ground): 26.5 kph kph ± 0.8 kph
Steering & Suspension
Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel, Mechanical Self-Adjusting Drum
Parking Brake: Self-Compensating, Single Point Engagement
Tyres: 20 x 8 - 10
Body & Chassis
Frame: Welded steel with Durashield powder coat
Front Body & Finish: Injection Moulded TPO
Rear Body & Finish: Injection Moulded PP
Standard Colour: Forest Green
Optional Colour: Almond, Black, Electric Blue, Flame Red, Orange, Patriot Blue, White
Available Seat Colours: Grey
)
)
)
