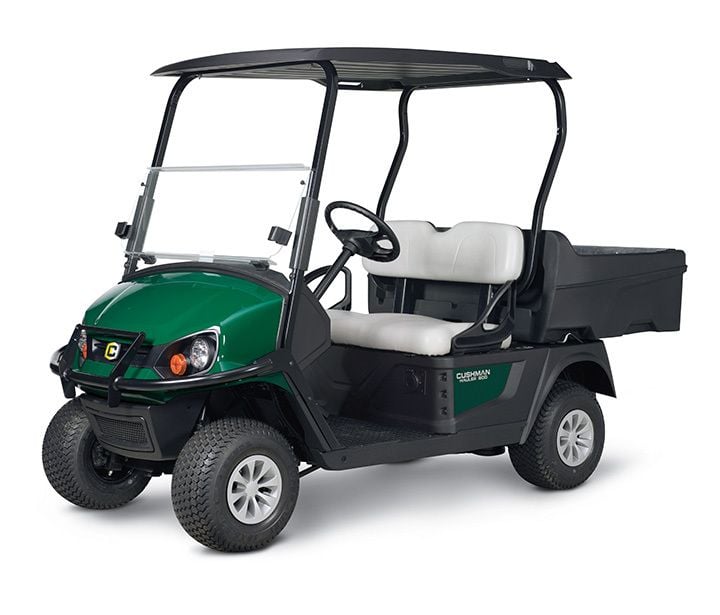

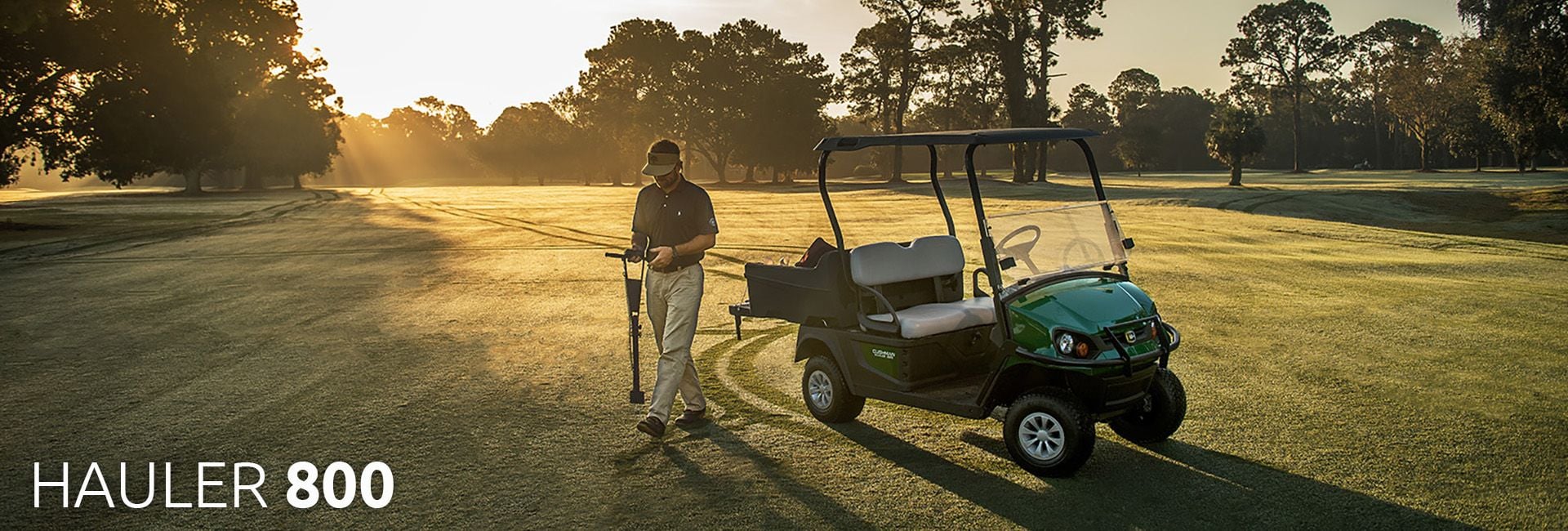

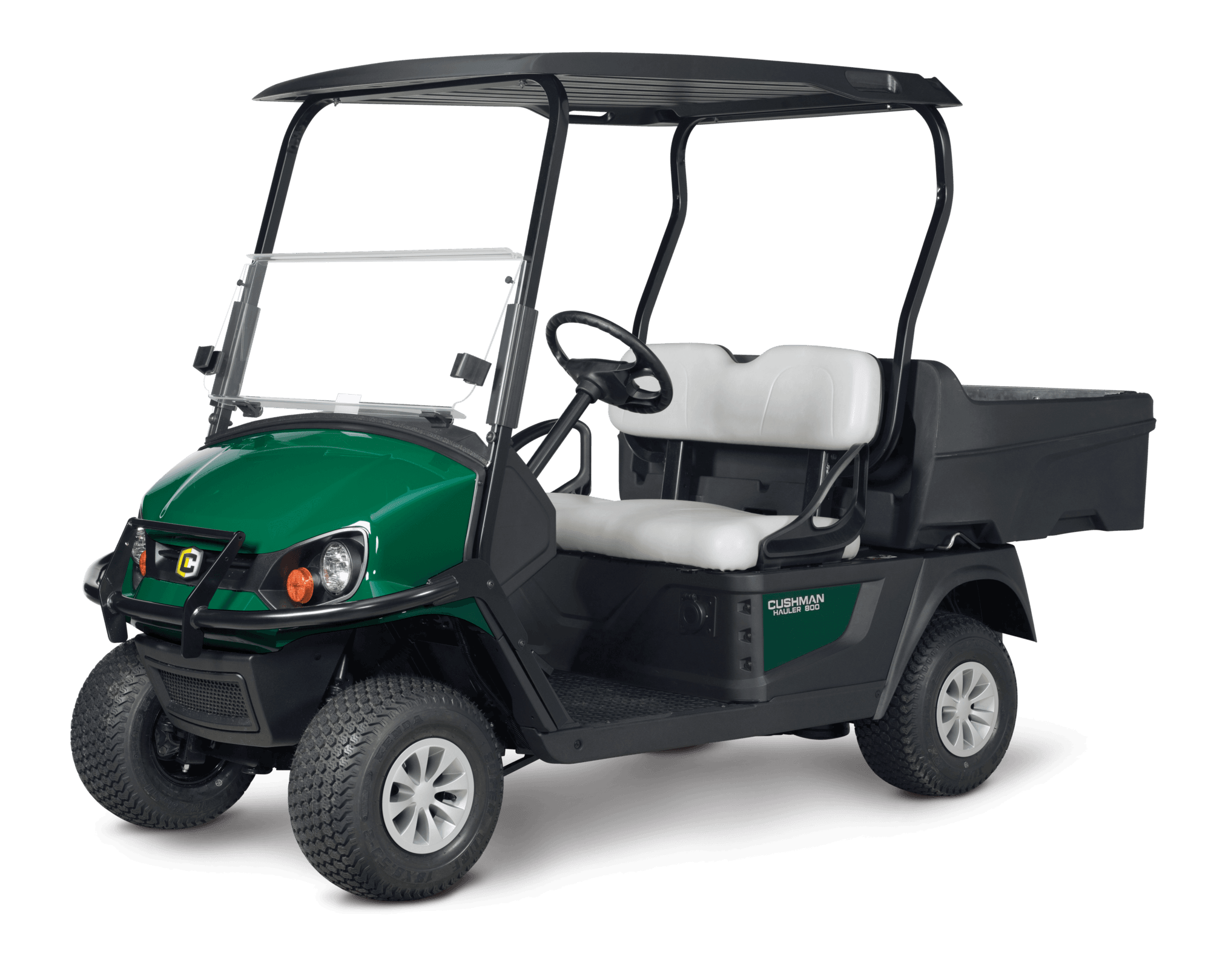

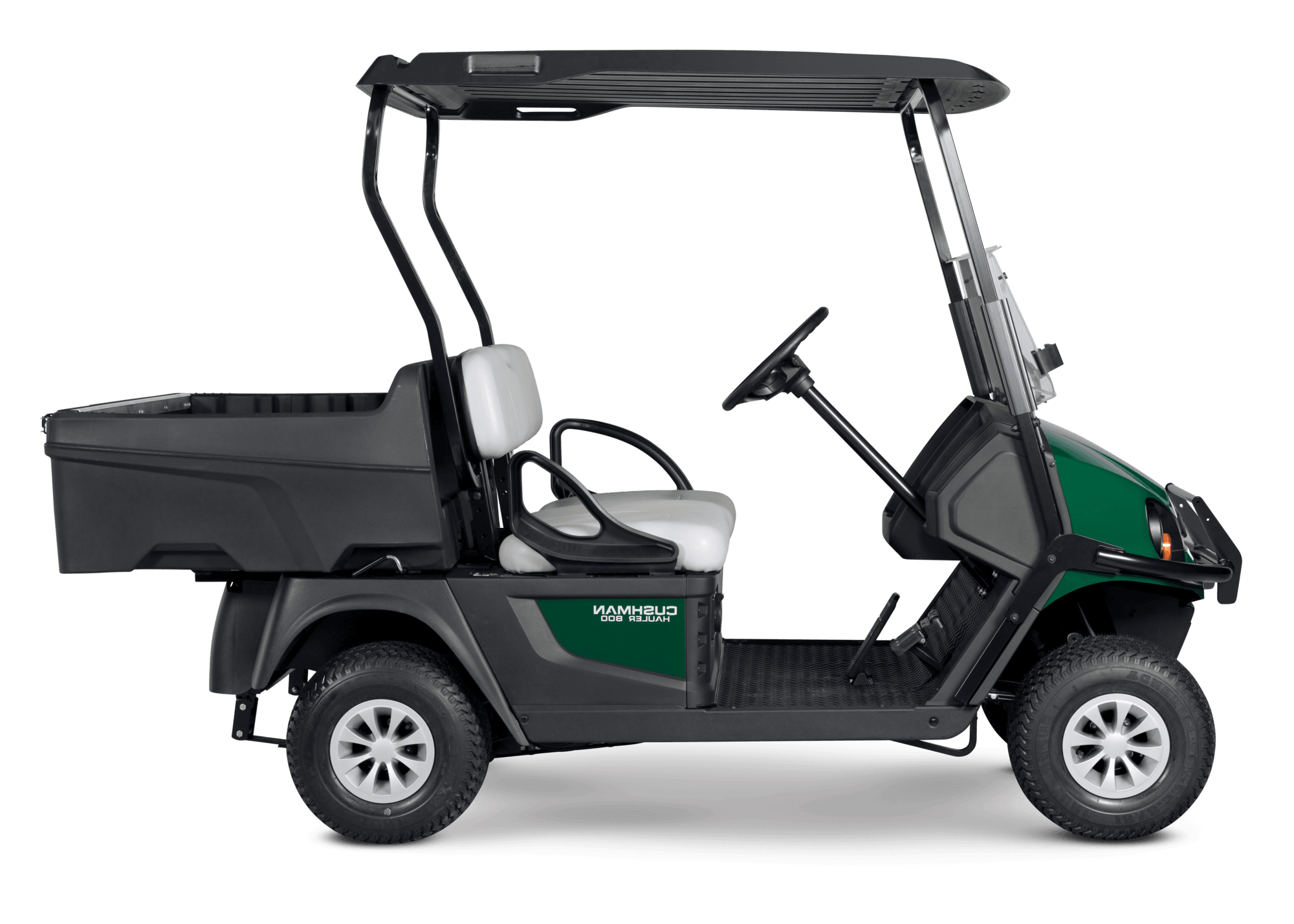

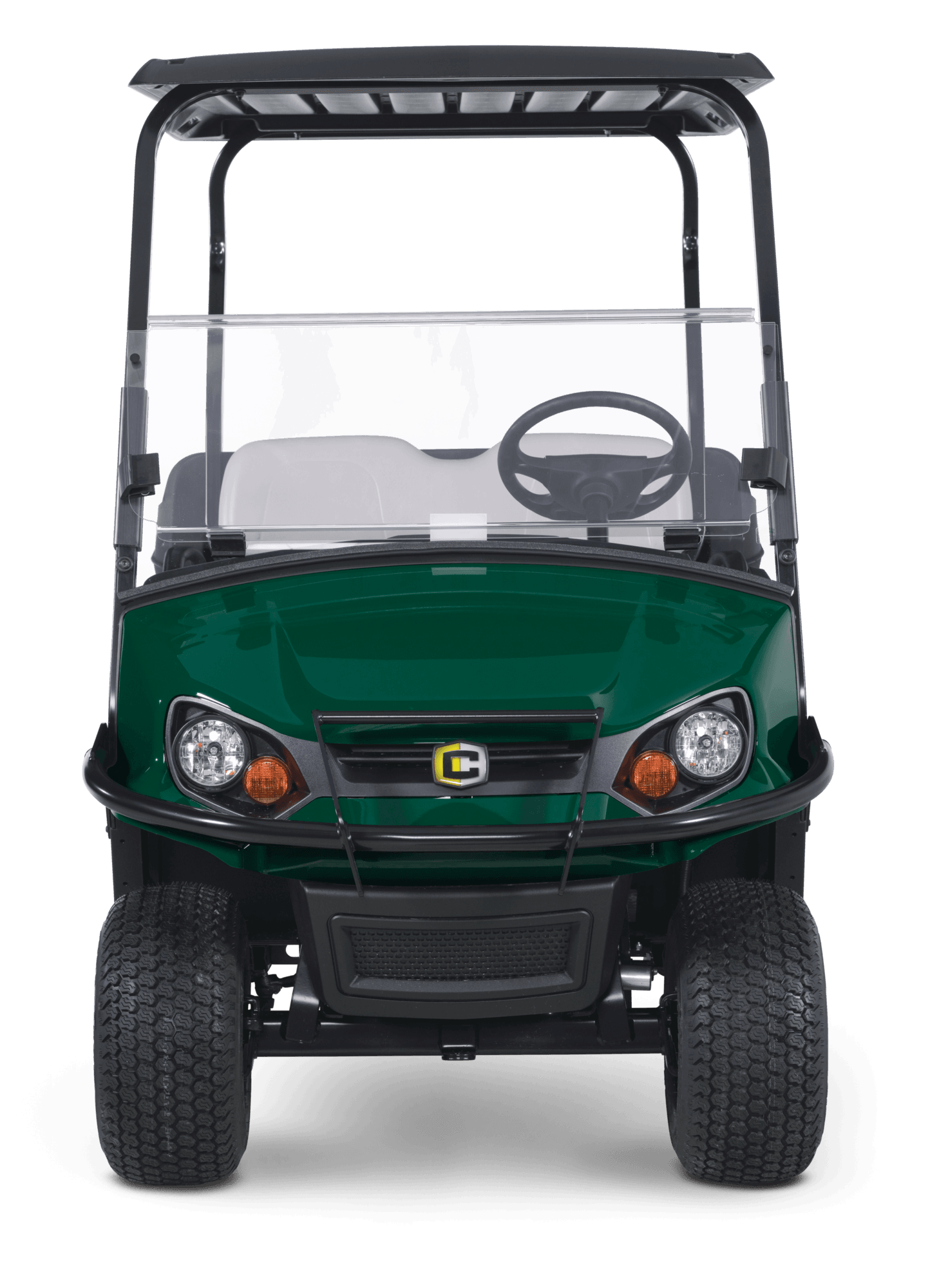

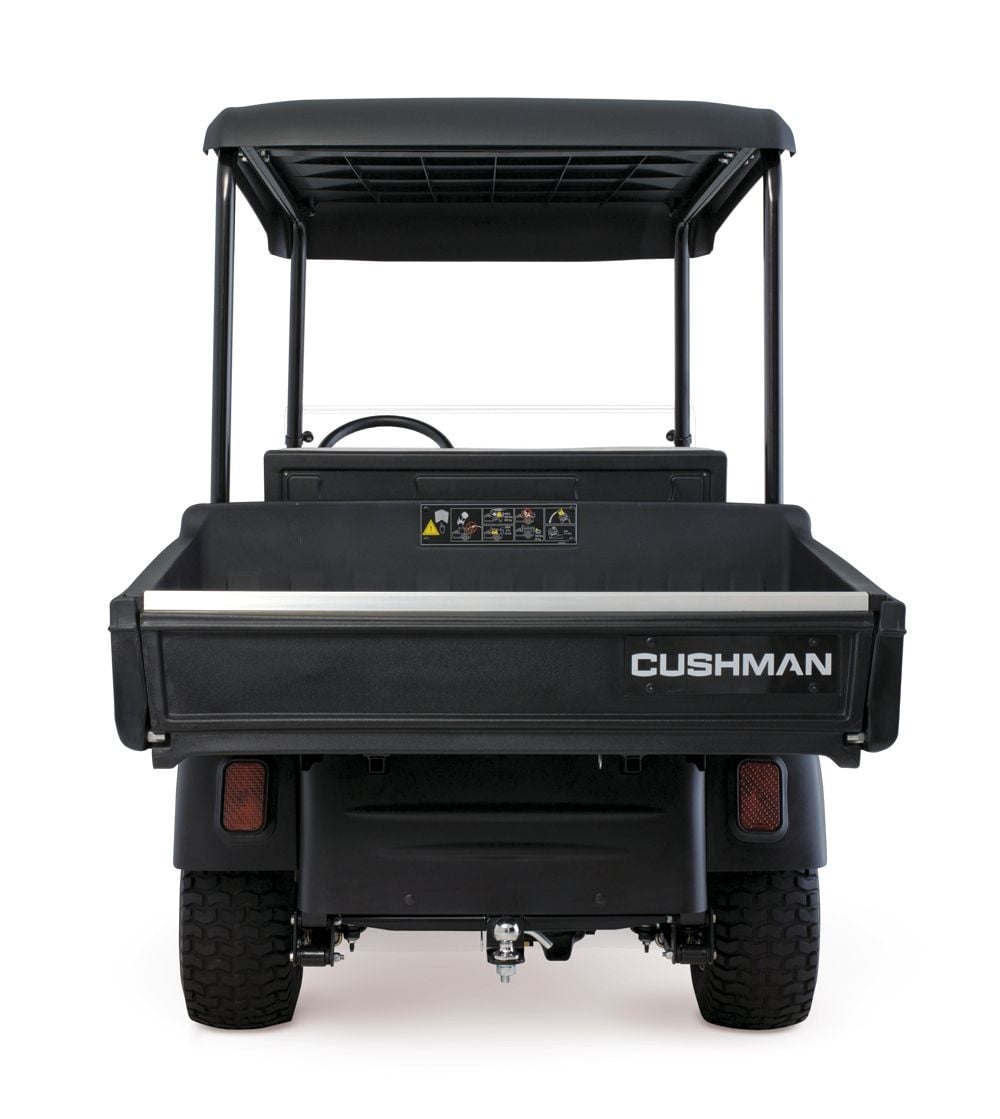

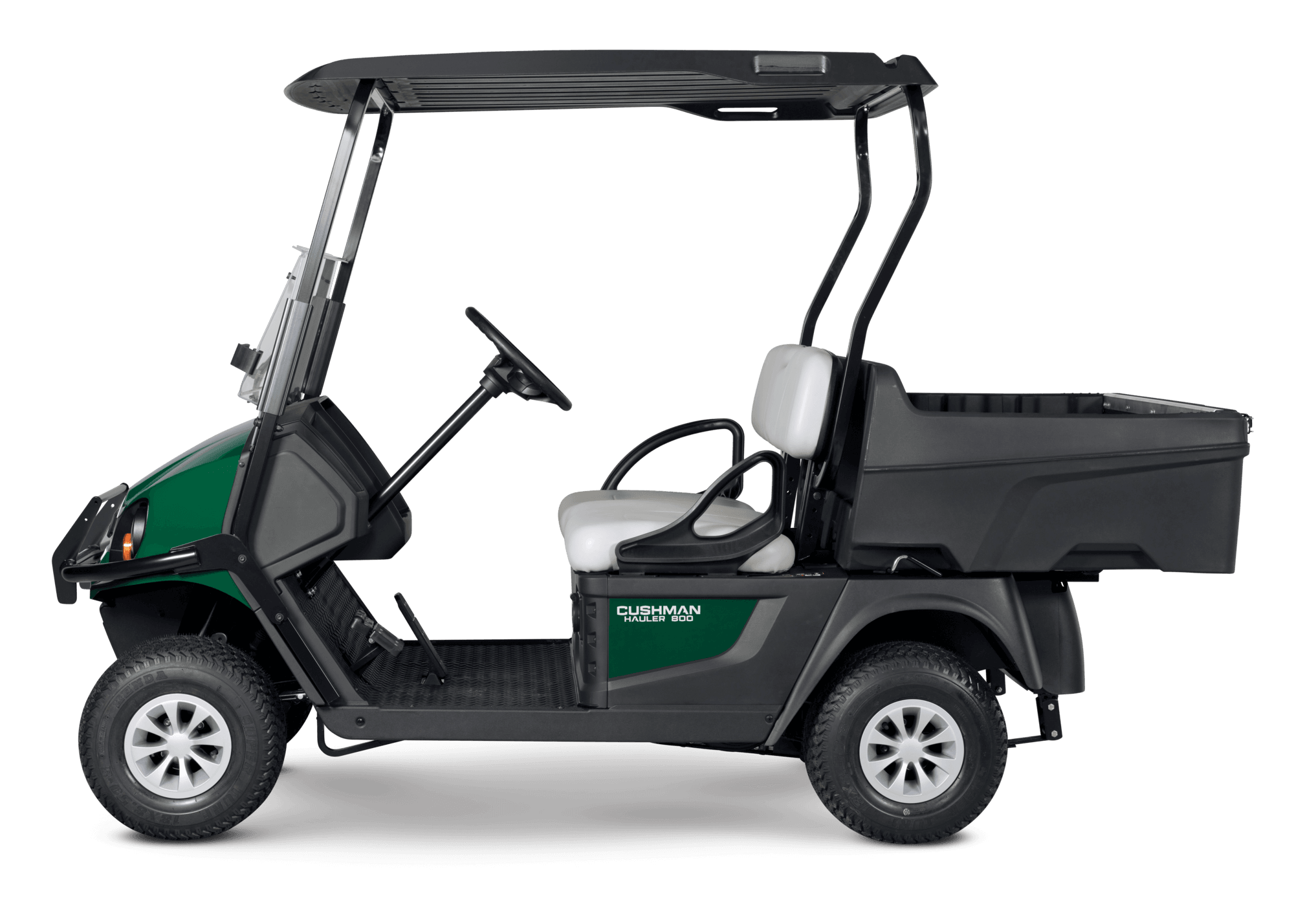

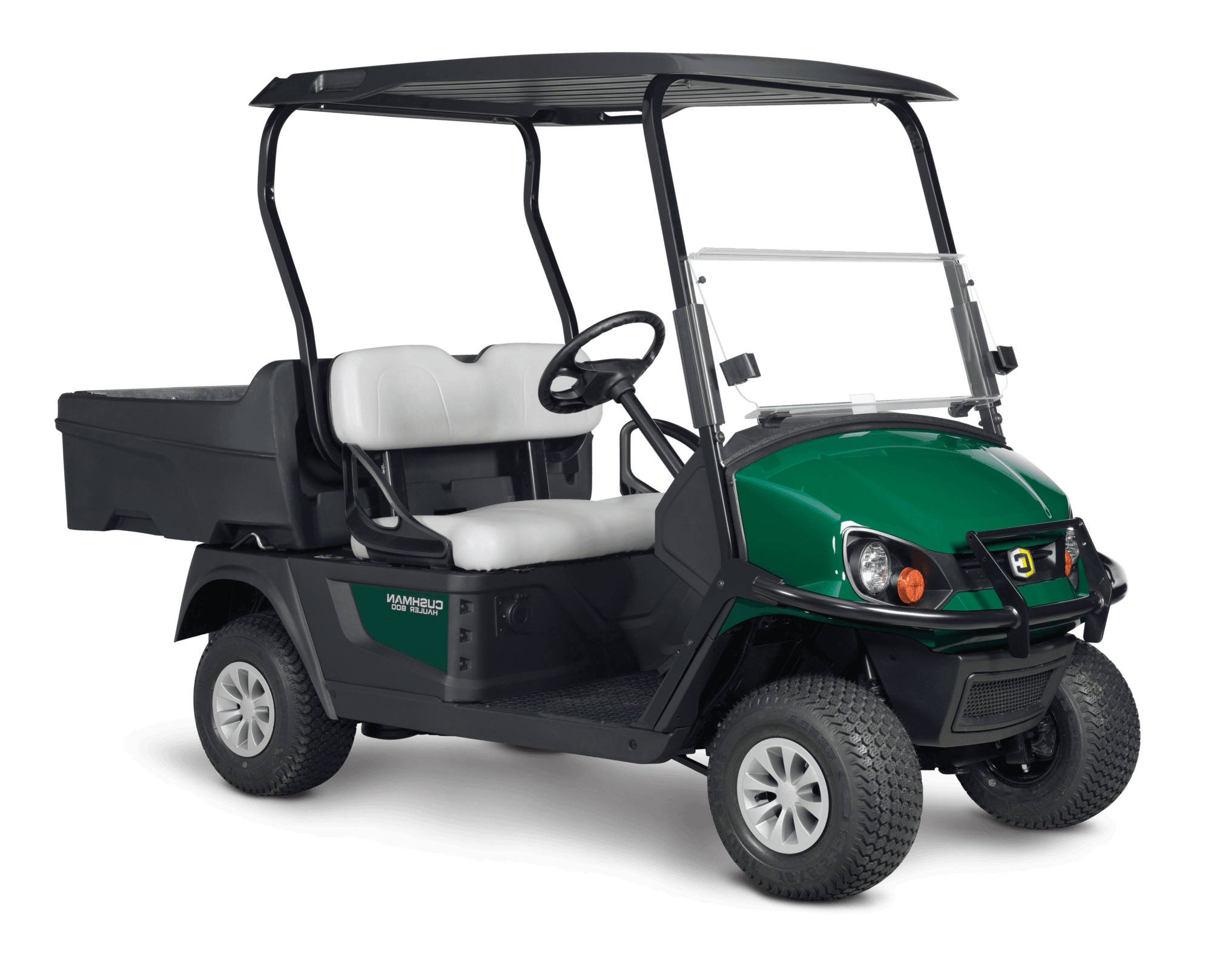

Hauler 800 ELiTE - 56v AC Electric
With faster charge time, consistent performance, increased range and a lightweight footprint, Hauler 800 ELiTE vehicles are designed to maximize productivity and decrease energy costs. A highly customizable bed, functional dash and a range of options make Hauler 800 ELiTE vehicles a must have for your crew.
Standard Features
- 1 x Samsung Lithium Ion 4.2 Maintenance Free Battery Pack with Battery Management System
- 48v Delta Q Lightweight DC Portable Charger
- Intelli Brake System
- Black Top Assembly & Grey Seating
- Head Tail & Brake Lights
- Turn Signals
- Steel DuraShield Epoxy Coated Chassis
- Body Finish Injection Moulded TPO
- State of Charge Meter
- Hour Meter
- DC Converter
- Front Black Bumper/ Brush Guard
- Unique Key Switch
- Fender Flare
- Rear Hitch Receiver
- Limited Slip Differential with Di Guard

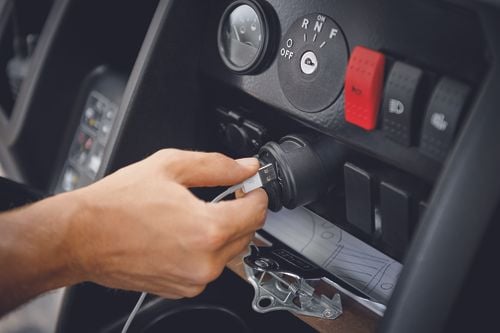

- 12-Volt Outlet
- Split Windshield
- Horn and Reverse Beeper
- K 500 20x 8- 10 (6 Ply) Wheels
- Comfort Grip Steering Wheel
- AC Motor
- Plastic Bed with Manual Gas Assisted Lift
- Metallic Hubcaps ( Gold or Silver)
- Choice of Colours
Options/Accessories
- Improved Surface Tyres
- On-board Charger
- LED Headlights with High/Low Beam
- ROPS-Certified Cab
- Bed Dividers
- Long-Handled Tool Holder
- Cargo Mesh Netting
- All Weather Enclosure
- USB Outlet
- Canopy Storage Net
- Rearview Mirror
- Electric Bed Lift Upgrade
- Tow Hitch and 50 mm Tow Ball
Specifications
Dimensions
Overall Length: 280 cm
Overall Width: 125 cm
Overall Height (No Canopy) 120 cm
Wheel Base: 166 cm
Front Wheel Track: 94 cm
Rear Wheel Track: 97 cm
Ground Clearance (at differential): 11 cm
Cargo Box Capacity: 8.4 Cu ft (0.24m³)
Cargo Box Material: Roto-Moulded Polyethylene
Cargo Deck Dimmensions: 113 cm x 72 cm x 30.5 cm
Power
Powertrain: 56 Volts AC
Horsepower: 11.7 HP ( 8.7 kW) Peak
Electric System: 48 Volt
Battery (qty/type): 1 x Samsung 90 AH Lithium Ion
Key or Pedal Start: Pedal Start
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse
Rear Axle Ratio: 16.99:1
Performance
Seating Capacity: 2 Person
Curb Weight: 364 Kg
Vehicle Load Capacity: 362.9 Kg
Bed Load Capacity: 181.4 Kg
Towing Capacity: 408.2 Kg
Outside Clearance Circle: 5.8 m
Intersecting Aisle Clearance: N/A
Speed (level ground): 23.3 kph kph ± 0.8 kph
Steering & Suspension
Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers

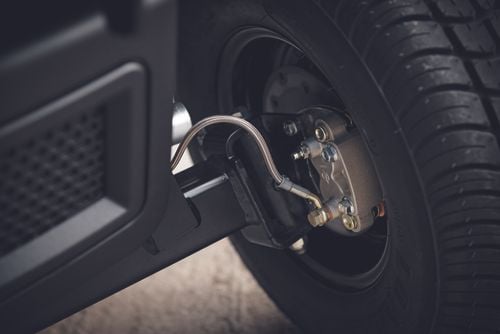

Service Brake: Rear Wheel, Mechanical Self-Adjusting Drum
Parking Brake: Self-Compensating, Single Point Engagement
Tyres: 20 - 8 - 10 (6 Ply Rated)
Body & Chassis
Frame: Welded steel with E-Shield e-coat plus Durashield powder coat
Front Body & Finish: Injection Moulded TPO
Rear Body & Finish: Injection Moulded PP
Standard Colour: Forest Green
Optional Colour: Almond, Black, Electric Blue, Flame Red, Orange, Patriot Blue, White
Available Seat Colours: Grey
)
)
