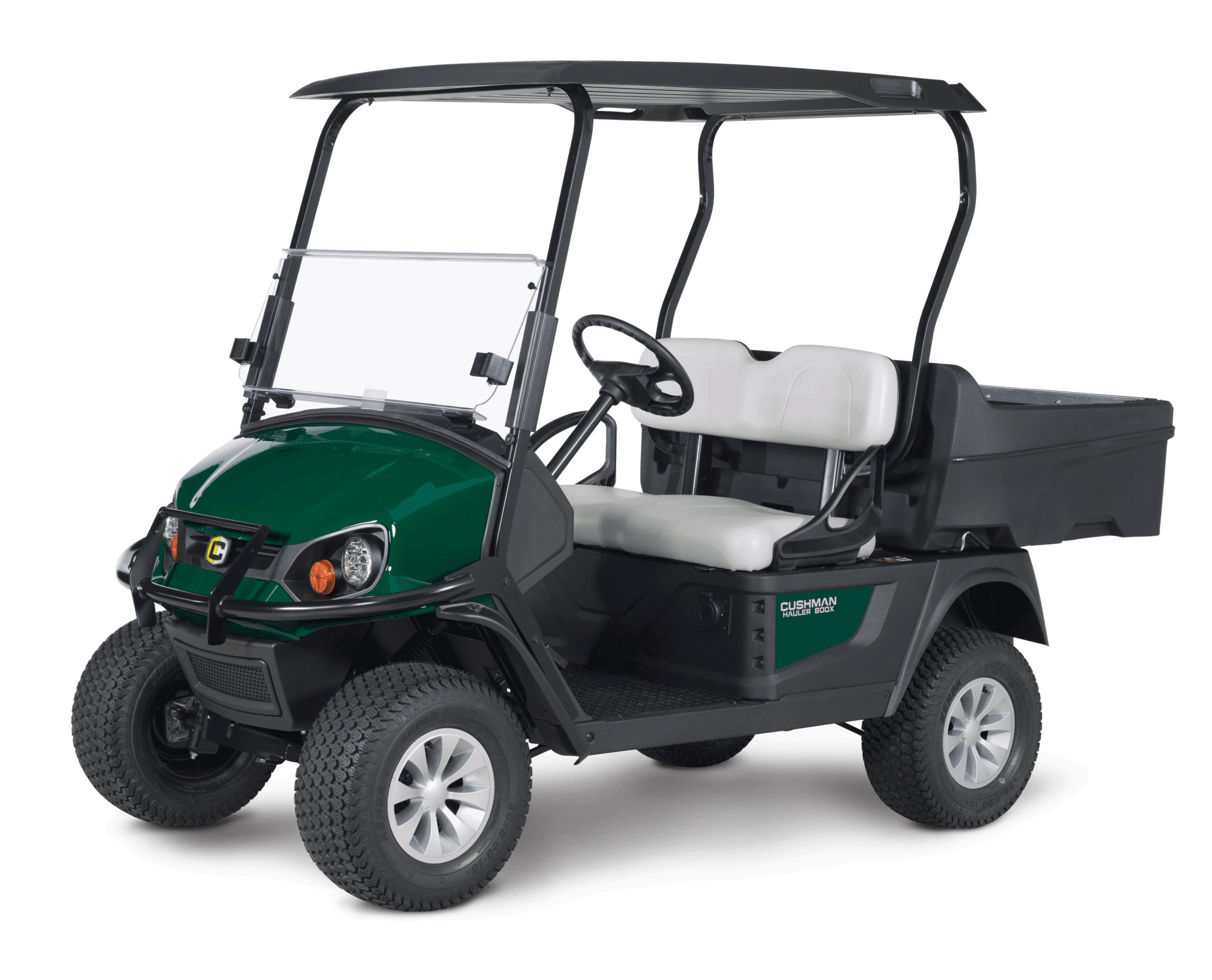

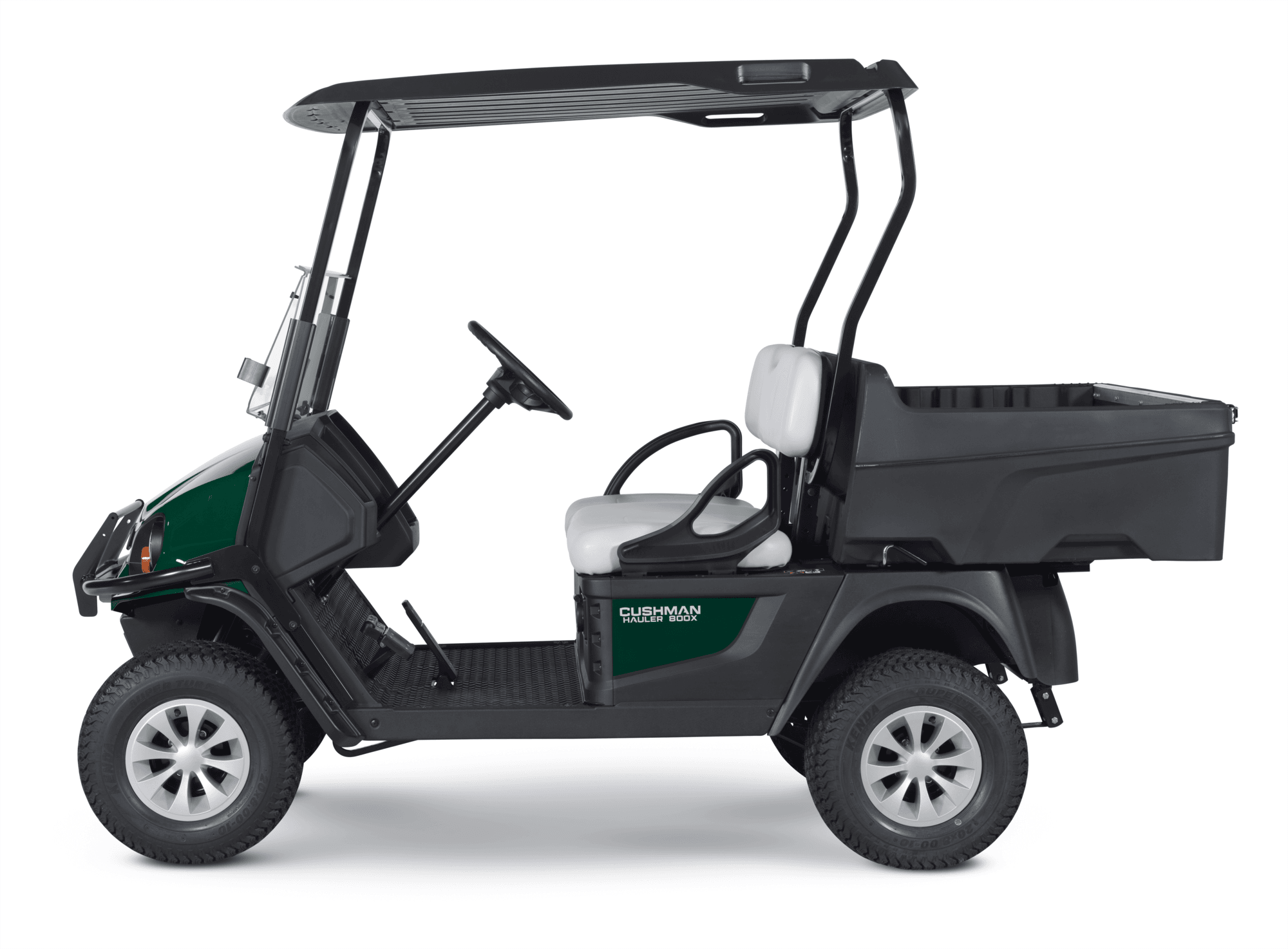

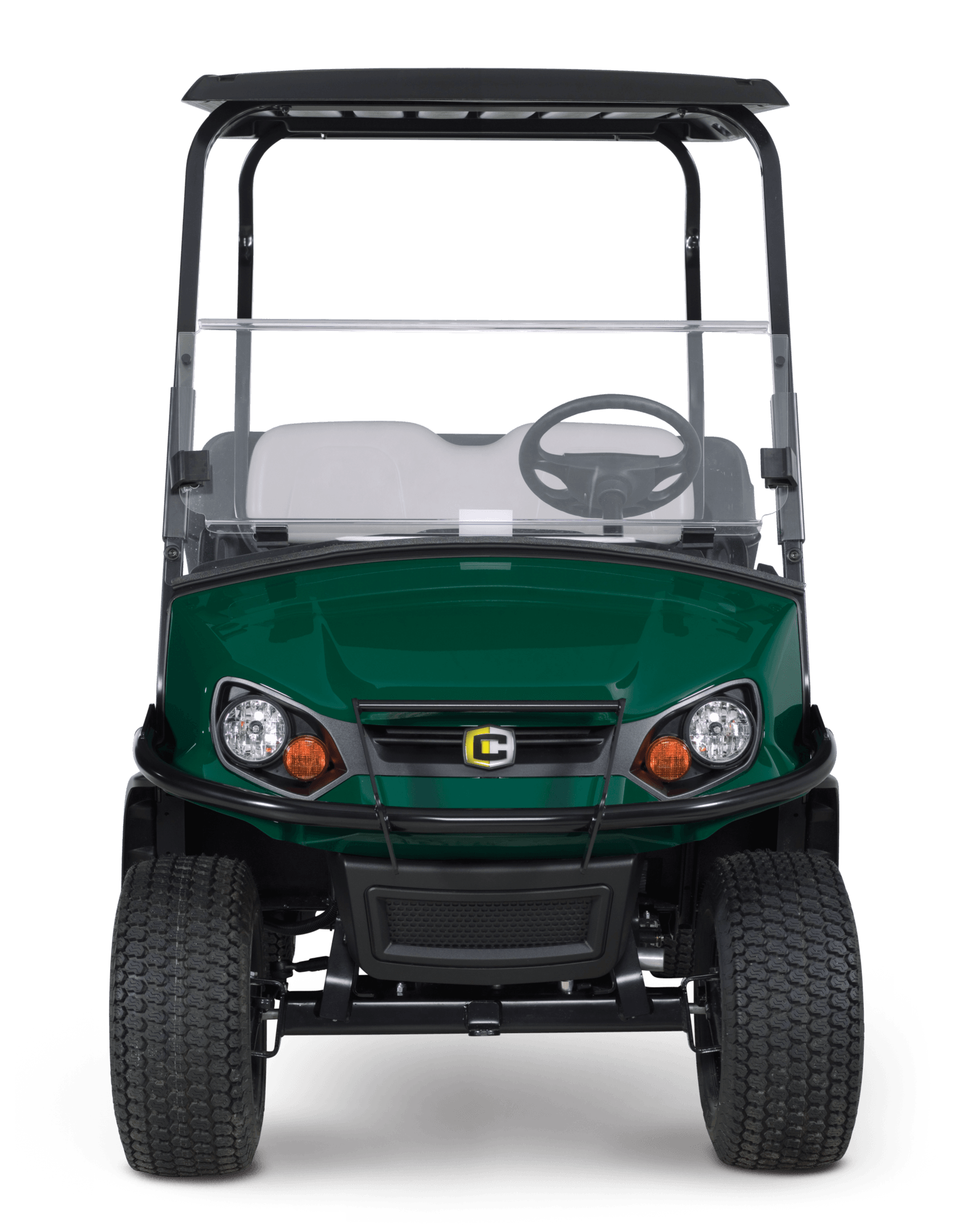

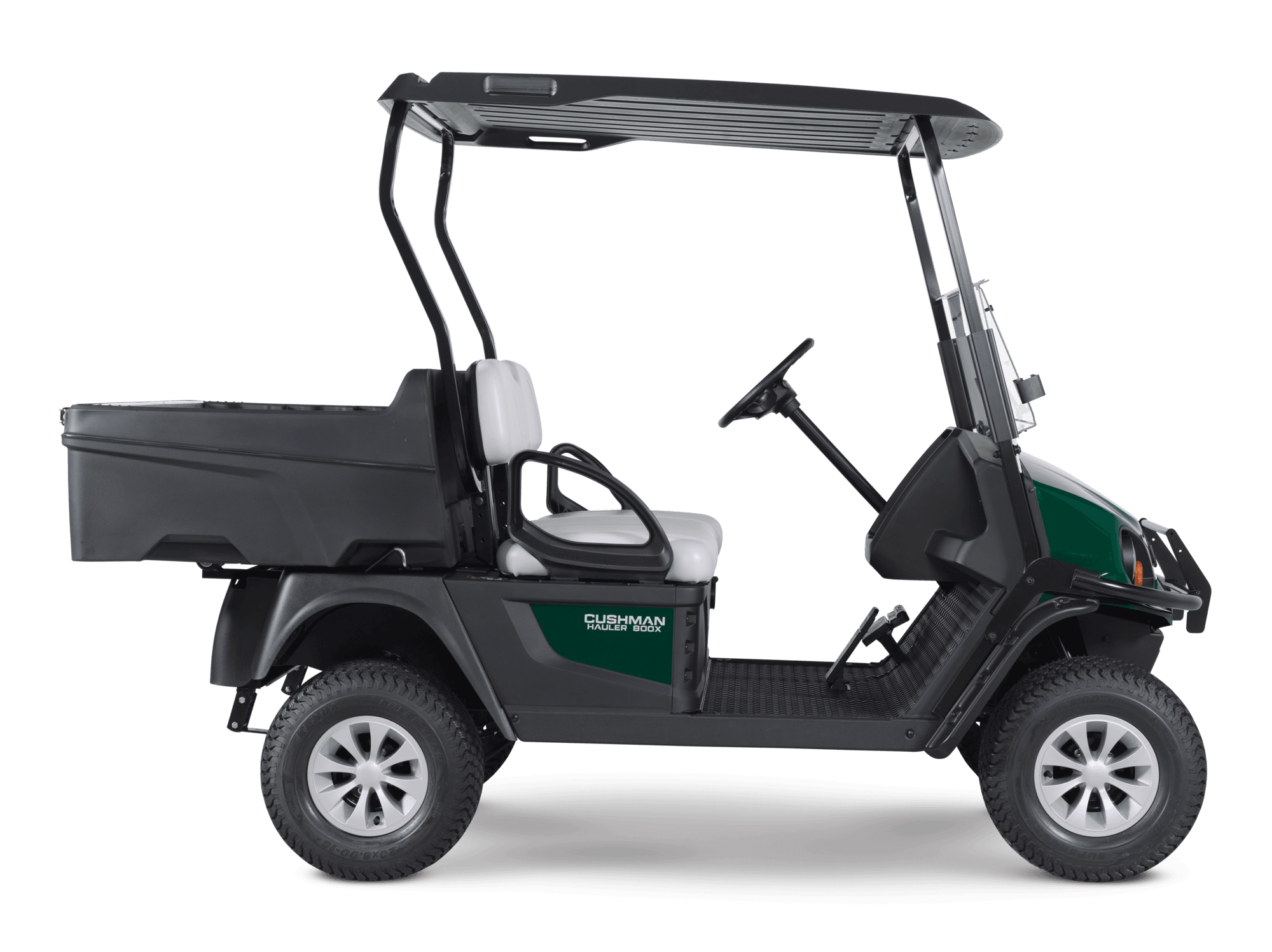

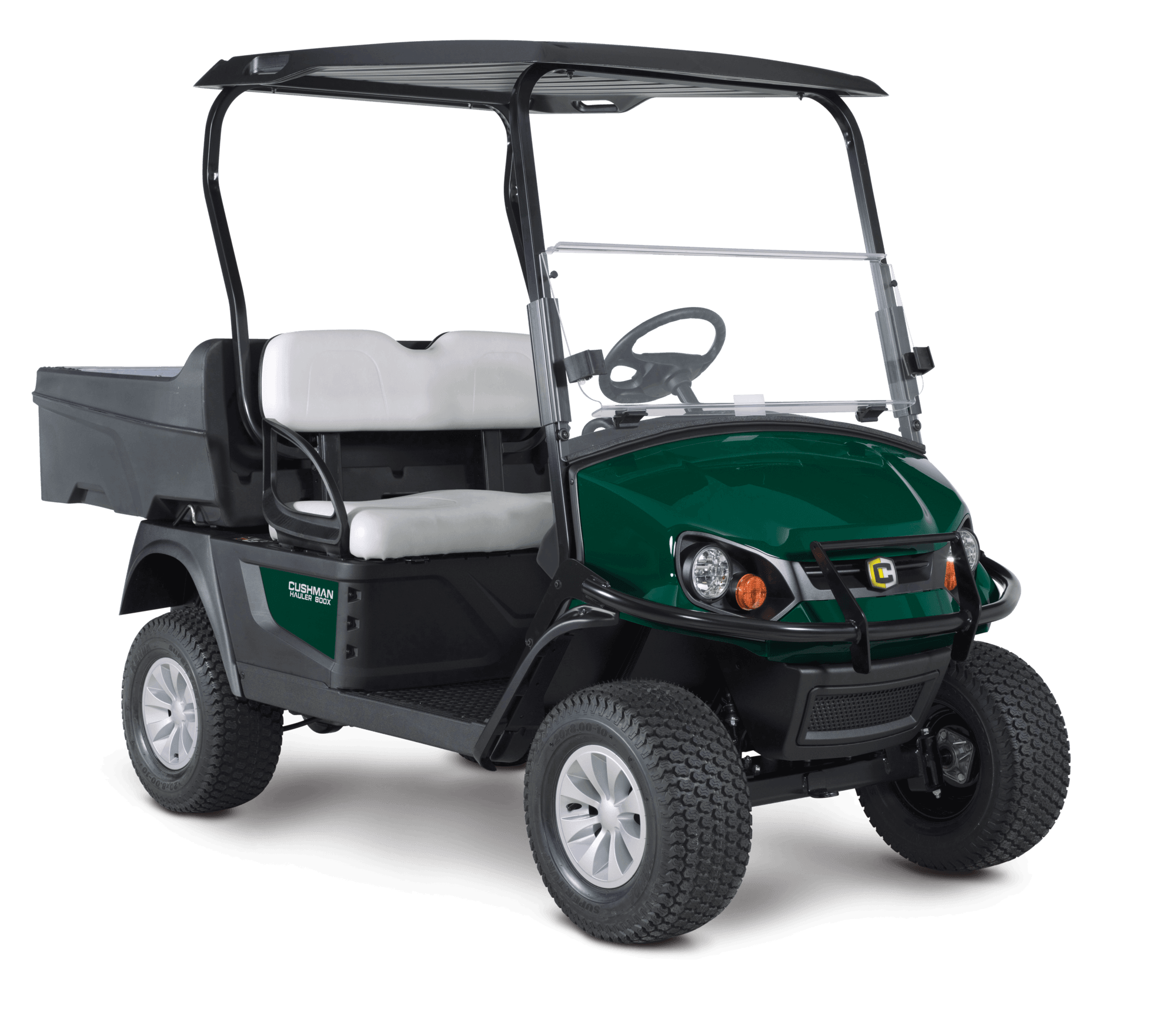

Hauler 800X - EFI Petrol 13.5hp
The Hauler 800X approaches every job with the perfect mix of toughness and real-world utility. Available with your choice of a gas or electric powertrain, rugged tires and a lifted suspension, it's built to help you get the job done.
Standard Features
- Kawasaki 13hp Single Cylinder EFI Engine
- Black Top Assembly & Grey Seating
- LED Headlights, Tail & Brake Lights
- Turn Signals
- Steel DuraShield Epoxy Coated Chassis
- Body Finish Injection Moulded TPO
- Low Fuel/Oil Gauge
- Hour Meter
- Front Black Bumper/ Brush Guard
- Unique Key Switch
- Fender Flare
- Rear Hitch Receiver
- Limited Slip Differential with Diff Guard
- 12-Volt Outlet
- Split Windshield
- Horn and Reverse Beeper
- Choice of K 500 20x 8- 10 (6 Ply) or Trail Wolf 20x 11-10 Wheels
- Comfort Grip Steering Wheel
- Plastic Bed with Manual Gas Assisted Lift
- Metallic Hubcaps ( Gold or Silver)
- Raised Suspension
- Choice of Colours
Options/Accessories
- LED Headlights with High/Low Beam
- ROPS-Certified Cab
- Bed Dividers
- Long-Handled Tool Holder
- Cargo Mesh Netting
- All Weather Enclosure
- USB Outlet
- Canopy Storage Net
- Rearview Mirror
- Electric Bed Lift Upgrade
- Tow Hitch and 50 mm Tow Ball
Specifications
Dimensions
Overall Length: 280 cm
Overall Width: 125 cm
Overall Height (with canopy): 188 cm
Wheel Base: 166 cm
Front Wheel Track: 94 cm
Rear Wheel Track: 97 cm
Ground Clearance (at differential): 14 cm
Cargo Box Capacity: 8.4 Cu ft (0.24m³)
Power
Powertrain: 4-Cycle 24.5 ci(401cc)
Valvetrain: Single Cylinder OHV
Horsepower: 13.5 (10.1 kW)
Electric System: Starter/Generator. Solid-State Regulator
Battery (qty/type): One, Maintenance Free 12 V
Key or Pedal Start: Pedal Start
Oil Filter: Spin-On
Cooling System: Air Cooled
Fuel Capacity: 22.6 Litre
Drive Train: Continously Variable Transmission (CVT)
Transaxle: Differential with Helical Gears
Gear Selection: Forward-Reverse
Rear Axle Ratio: 11.47:1 (Forward) 14.53:1 ( Reverse)
Performance
Seating Capacity: 2 Person
Curb Weight: 376 Kg
Vehicle Load Capacity: 328 Kg
Bed Load Capacity: 147.4 Kg
Towing Capacity: 230 Kg
Outside Clearance Circle: 5.8 m
Speed (level ground): 26.5 kph kph ± 0.8 kph
Steering & Suspension
Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel, Mechanical Self-Adjusting Drum
Parking Brake: Self-Compensating, Single Point Engagement
Tyres: K500 20 - 8 - 10 (6 Ply Rated)
Body & Chassis
Frame: Welded steel with E-Shield e-coat plus Durashield powder coat
Front Body & Finish: Injection Moulded TPO
Rear Body & Finish: Injection Moulded PP
Standard Colour: Forest Green
Optional Colour: Almond, Black, Electric Blue, Flame Red, Orange, Patriot Blue, White
Available Seat Colours: Grey
)
